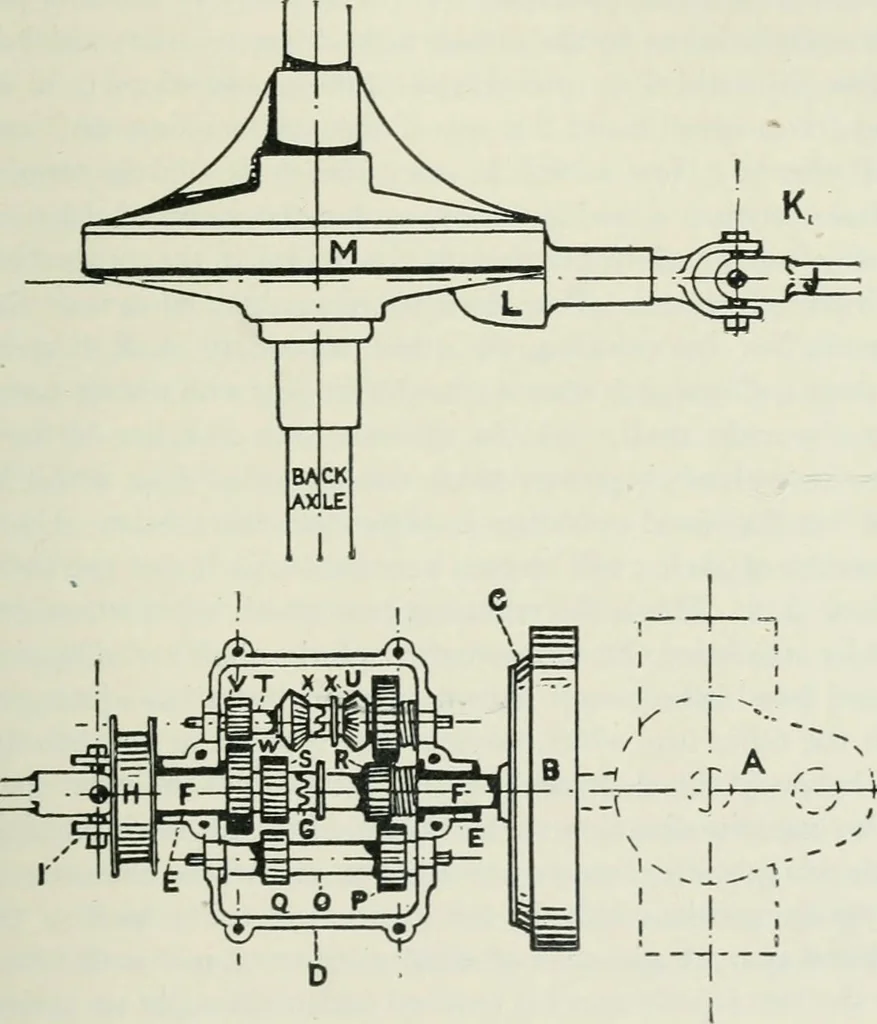

two shafts, F, F, are carried, these shafts being connectedin the centre by the serrated clutch G. The rearmost shaftcarries a break drum H, within which it is attached to the THE PETROL CAR 10^ universal joint i of the shaft j, the other end of the shaftcarrying the second Cardan joint k and a… … Fig. 20.—Renault Transmission Gear diiect through the shaft to the bevel gearing, which is a goodpoint, although the power has still to be transmitted per bevelgearing round a corner; so that, although so called, it is not atrue direct drive. To obtain the second of the three speedsprovided, a…
