Mechanical drawing for industrial and high schools (1915)
Leeds, Charles Carley, 1870- · New York, D. Van Nostrand company · leaf 76

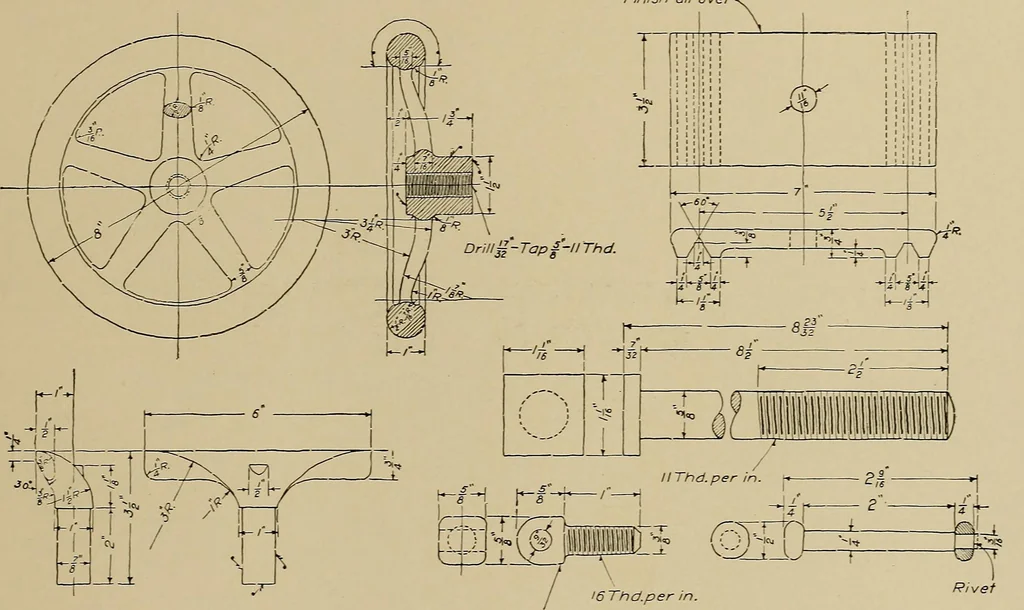

e sur-face on which it is placed is to be finished. On such pieces as bolts, screws, pins, shafts, spindles, and manysimilar shapes it is not necessary to place a finish mark, as it is under-stood that these pieces are usually finished all over. Do not overlook any of the dimensions on the various… … 6 Thd.per in. Harden class Industrial name John W.Roberts date Dec. 12-07. The Carnegie Institute or Technology PITTSBURGH, PA. 12 Speed LatheTool Rest Details scale £ & Full Size ows.«. C-1025 LESSON No. 33. TOOL-REST ASSEMBLY.—Drawing C-1026 is an assemblydrawing of the complete tool rest.…
