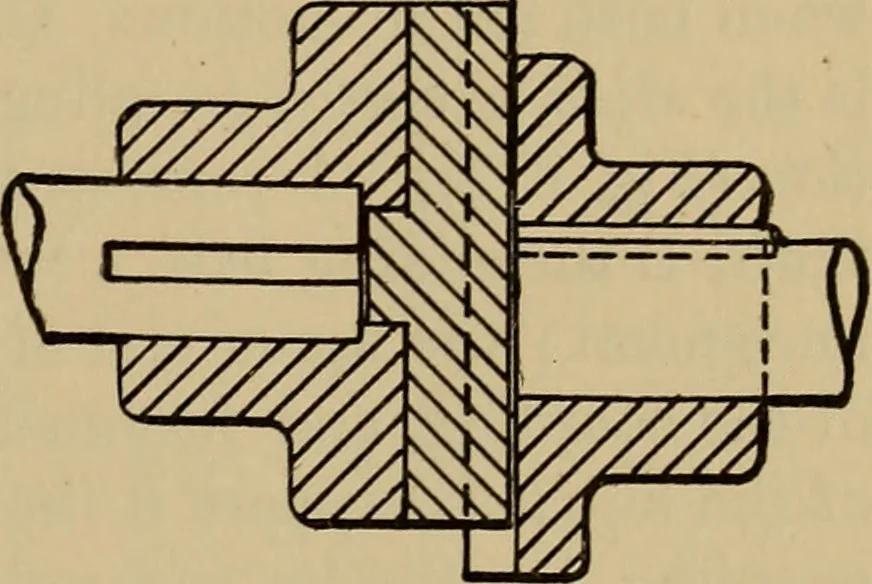

face of theseheads two grooves are cut, and between these faces an intermediate plate is in-serted with two tongues at right angles to each other, slide-fitted to the groovesin the heads, thus coupling the two shafts. In Fig. 609 the coupling admits of more motion. The grooves are in the… … t [T 1 1 — _[ 3 Fig. 608.
