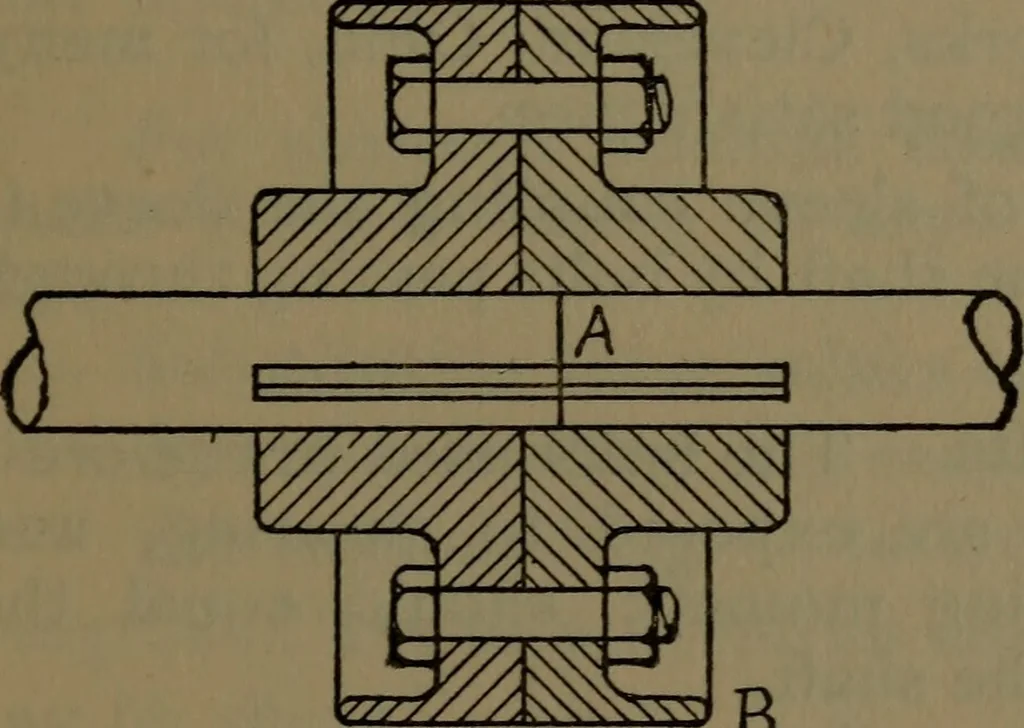

he flange or plate coupling ismost commonly used for fastening together adjacentlengths of shafting. Fig. 34 shows the proportions of such a coupling.The flanges are turned accurately on all sides, arekeyed to the shafts and the two are centered by theprojection of the shaft from one part into the… … ^sssij Fig- 34 The faces of this coupling should be trued upin a lathe after being keyed to the shaft. The sleeve coupling is less clumsy than the fore-going but is rather more complicated and expensive. 86 MACHINE DESIGN. In Fig. 35 is illustrated a neat and efifective coup-lino^ of this type. It…
