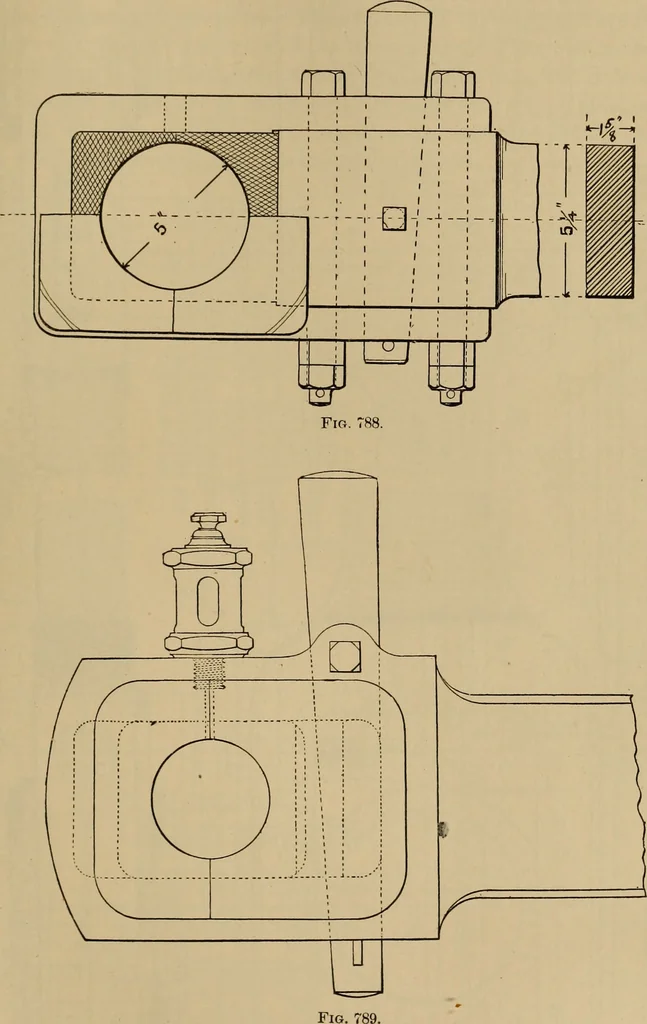

Fig. 787. MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. 351 In many marine engines the boxes of both crank and cross-head pins areconnected with strong and heavy bolts without any other rod. Fig. 786 is a strap-end of a connecting-rod, from the Corliss Steam-EngineCompany. The iDccnliarity is the… … In Fig. 788 the key is between the bolts; the weakness from bolt-holes orcotter-slot is compensated by the width of the strap. Fig. 789 is the box-end of a locomotive-rod, in which the strap gives placeto a box forged on the end of the connecting-rod. 352 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS.
