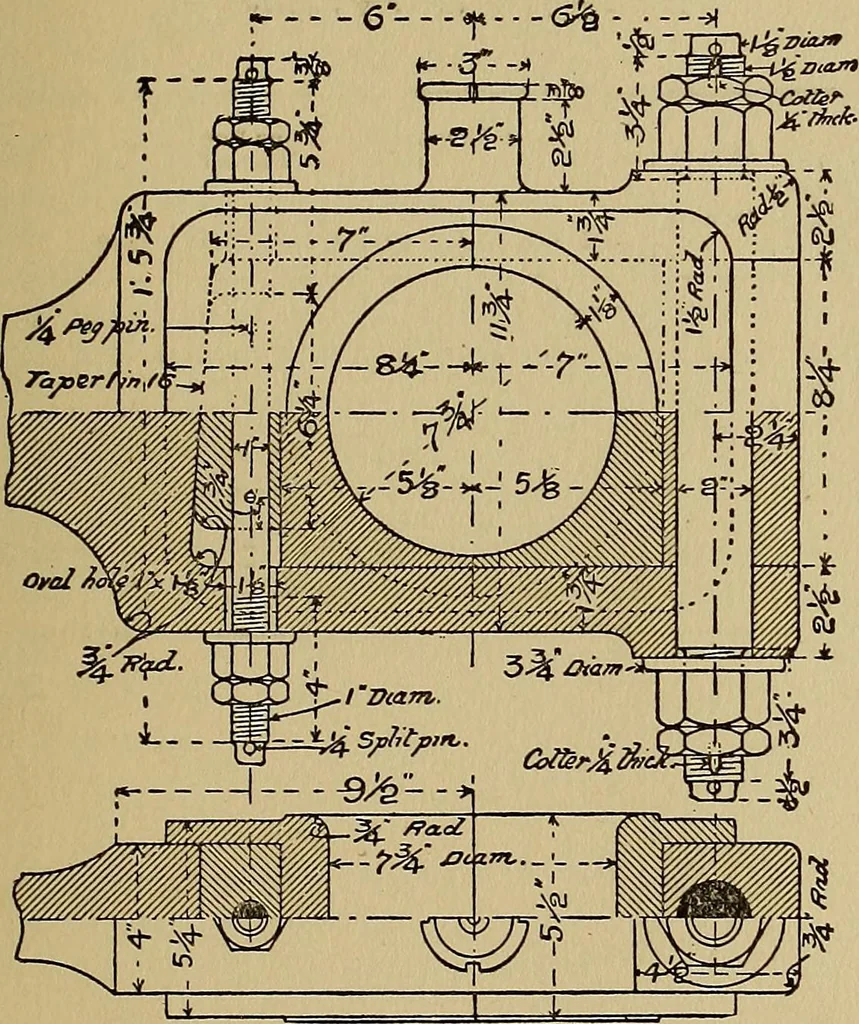

Pig. 201—Shaft-hanger with Adjustable Bearing. MACHINE DESIGN 113 brasses, -which have flanges on each side, are tight-ened up by a wedge-shaped block attached by twopins to a bolt screwed at both ends. … Fig. 202—^Locomotive Connecting-rod End. Since the angular motion of a long connecting-rod is small, the wear of the brasses at the cross-head end is slight. For this reason the bearing at the cross-head end of locomotive connecting-rods is sometimes made solid. Locomotive Cross-Head. Fig. 203…
