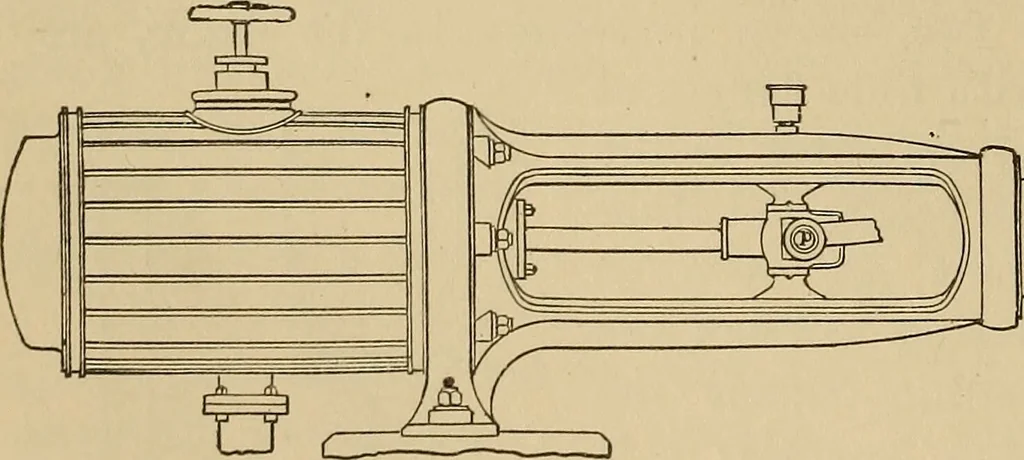

der 58 X 8 feet. The heads of the two cylinders are kept at the same levelsby increasing the length of the H. P. piston. Working-beams with vertical steam engines are now seldom used except in … IS i) v^ i=I] Fig. 804. connection with large pumps. For power the horizontal engine is now sub-stituted and connected closely with the fly-wheel. Fig. 804 represents suchan engine and frame. MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. 357 The pin p is the connection in the cross-head (Fig. 804)…
