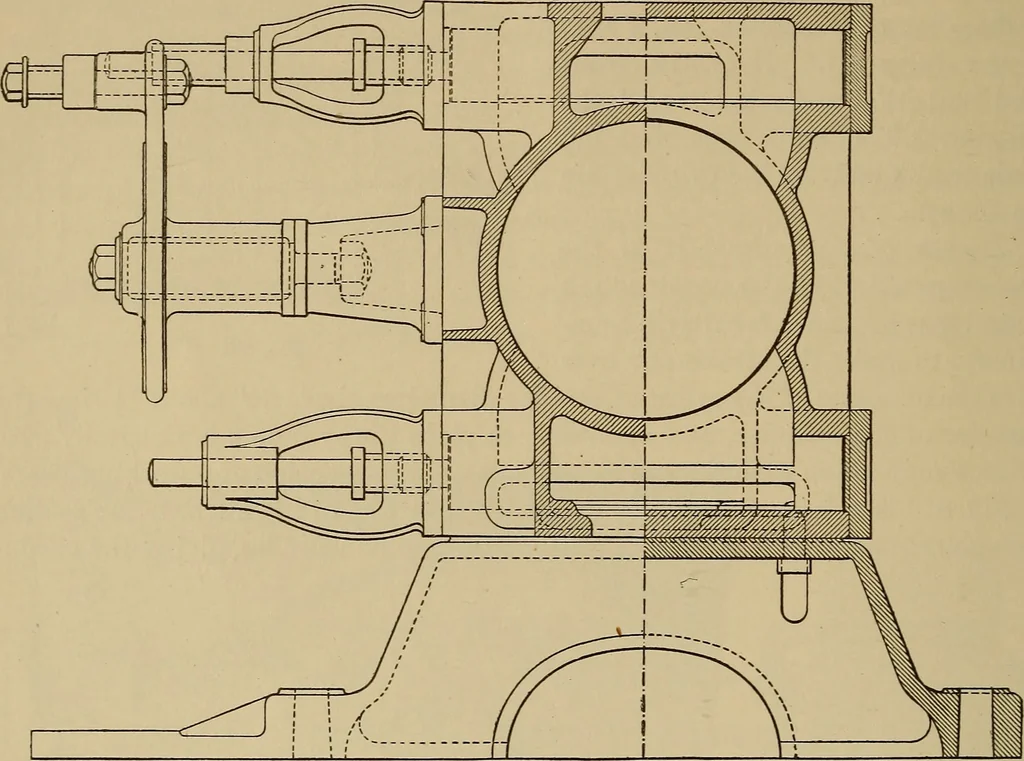

ess of shell Mr. Henthorne finds, by many examples in Corlisss largepractice, to conform to the formula t = 268 Vd., t and d being in inches. 360 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. Thus the thickness of the shell of a 16 cylinder will be V16 X 268 = 4 X 268 =1-072, a little more than 1.… … FiG. 814. ameter, the breadth of^flange to be about 3 times the diameter of the bolts, andthe pitch of the bolts, or the distance between centres, about 6 times the diam-eter of the bolts. Oast-iron is the material chiefly used for pistons, but those of wrought-iron,brass, bronze, and cast-steel…
