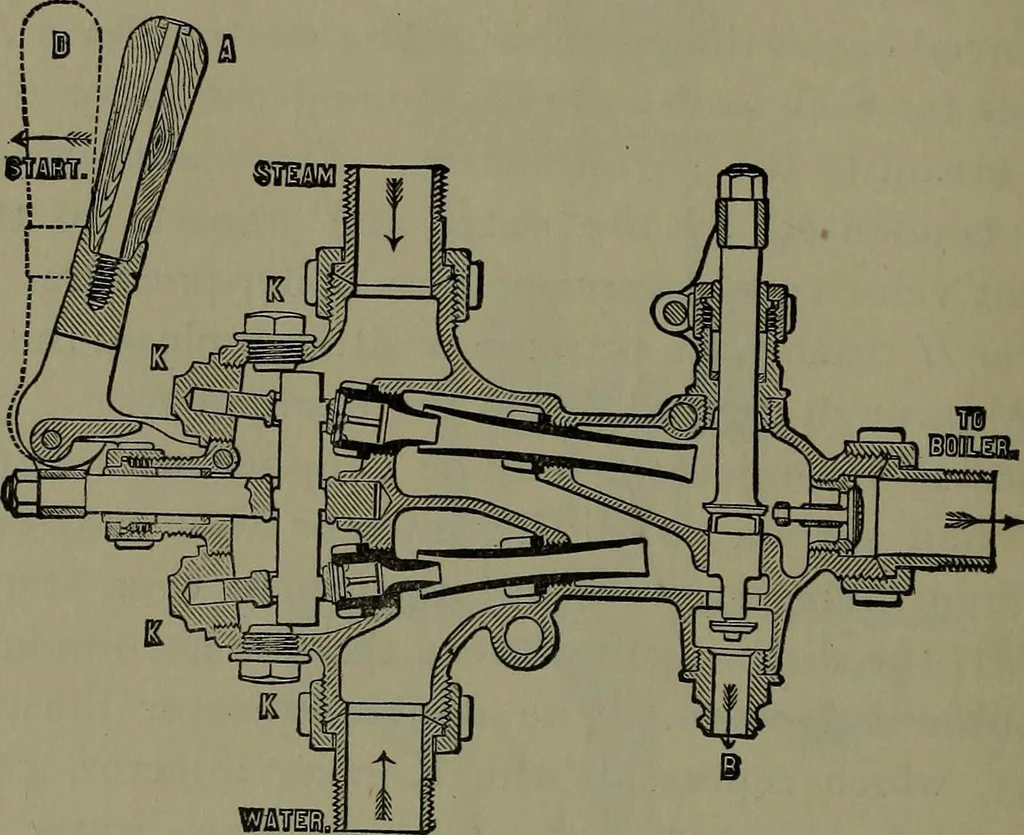

lves. Automatic Injectors.—In the discussions of injectorsthus far given it has been assumed that they work at fullcapacity, but as an injector must be able to bring the water- i8o THERMODYNAMICS OF THE STEAM-ENGINE. level in a boiler up promptly to the proper height, it willhave much more than the… … Fig. 33. limit may be extended somewhat by partially closing thewater-supply valve and so limiting the water-supply. The original Giffard injector had a movable steam-nozzleto control the thickness of the sheet of water mingling withthe steam, and also had a long conical valve thrust into…
