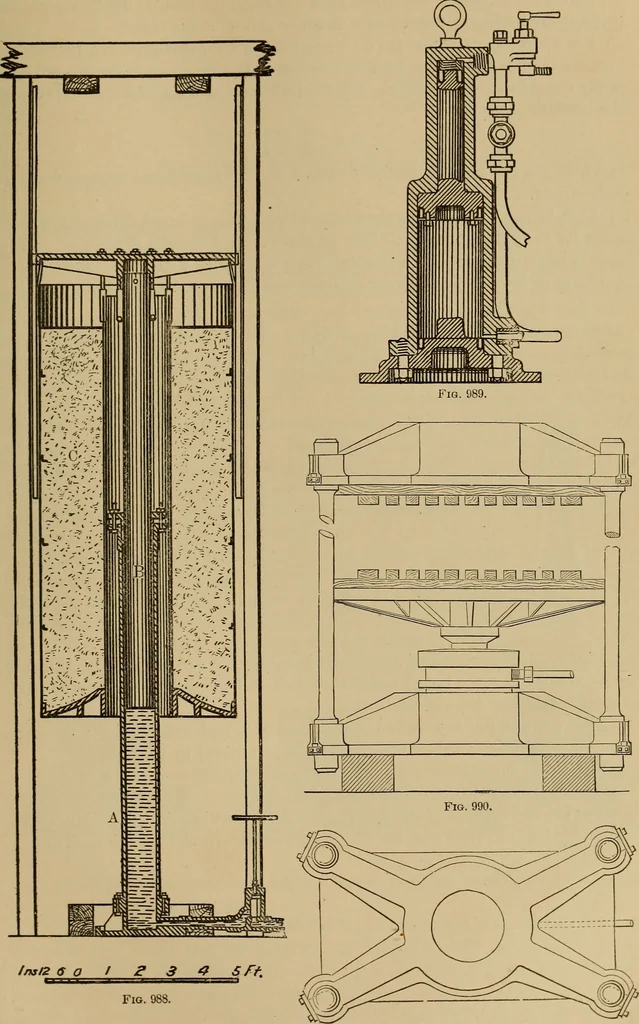

Fig. 986. Fig. 987. To make a hydraulic riveting machine that could be introduced into someof the more complex parts of the structure, it was necessary to increase thepressure of the riveter and reduce its dimensions. This was effected by themultiplier (Fig. 989), in which the usual high pressure… … Fig. 991. 414 MACHINE DESIGN AND MECHANICAL CONSTRUCTIONS. cylinder with its piston connected with a plunger of smaller diameter, and thepressure from the smaller cylinder is connected with the riveter. For hydraulic cylinders the common rules are for cast-iron to a pressure upto 2,000 pounds per…
