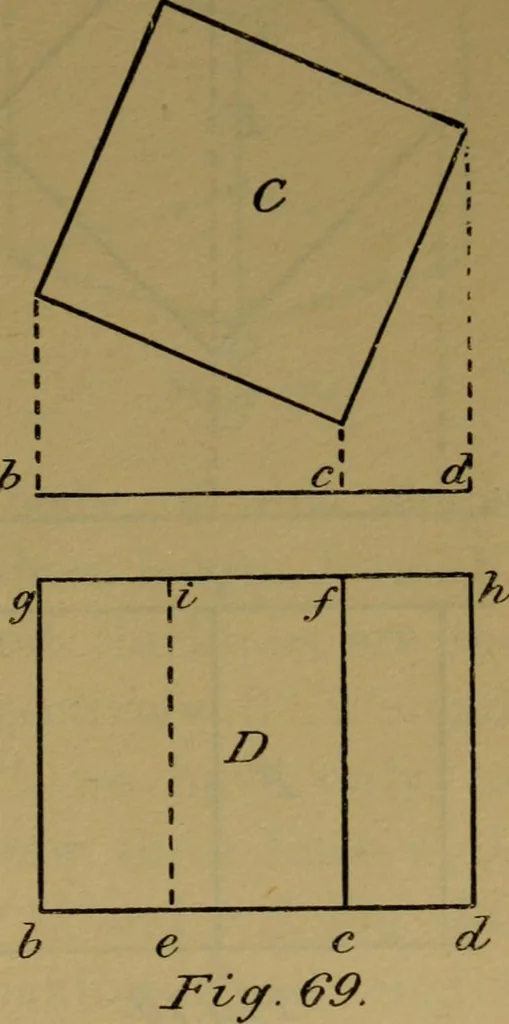

d to thewidth be, and the right-hand face will come intoview and will have theapparent breadth c d.The elevation, therefore,will now present theappearance shown in D,Fig. 69, where b ef grepresents one of thevisible faces of the cube,c d hf another, and e dh i and b e i g the twoinvisible or rear… … 156 Manual Training. This happens when the square C, Fig. 69, hasbeen turned so that its diagonal is perpendic-ular to the plane of projection, as at E, Fig. 70. The elevation thenappears as at F, inwhich a b and c d rep-resent the faces ofthe cube, and appearof equal width. If,now, we take our…
