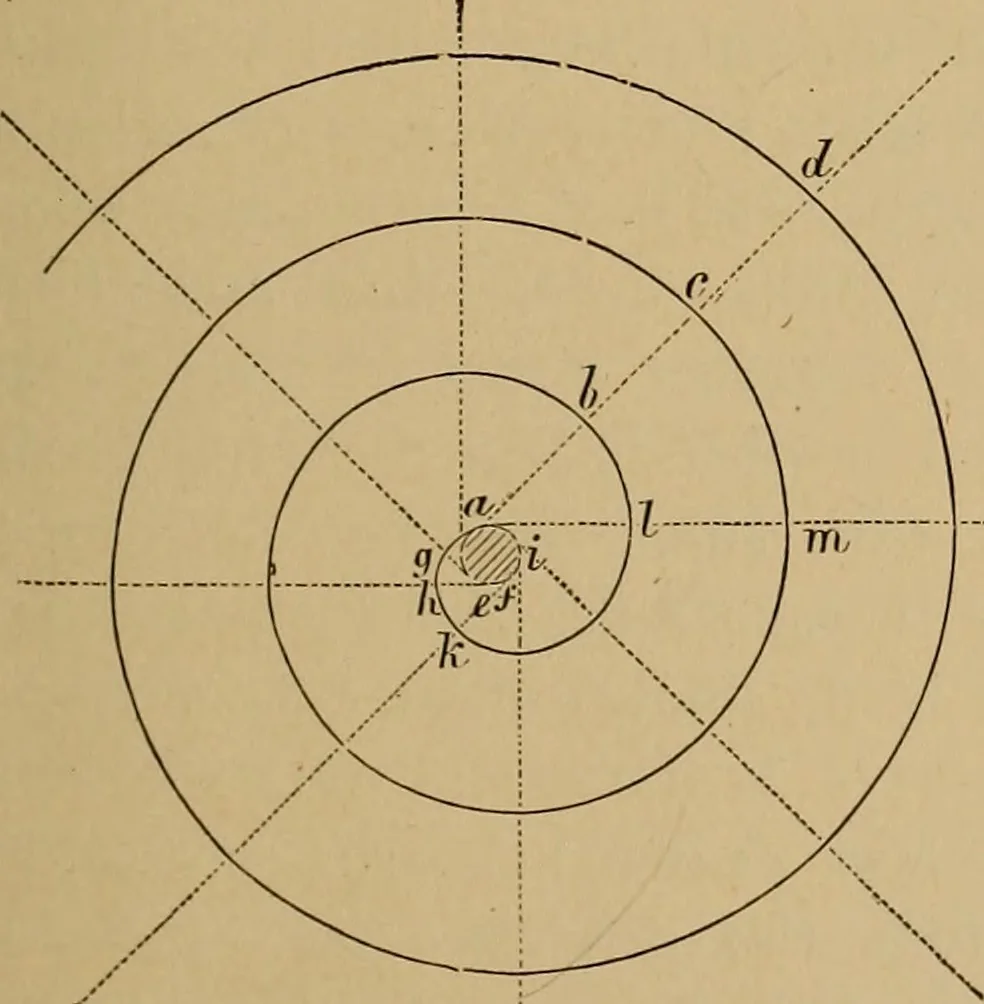

ler, will, as the ruler revolves around F, describe an hyperbola. To draw a tangent to any point of an hyperbola (Fig. 111). Let P be the point. On F P lay off P jt?, equal to F P ; draw the line Y p;from P let fall a perpendicular on this line, P p^ for the tangent. To describe a spiral (Fig. 112…
Mechanical drawing
