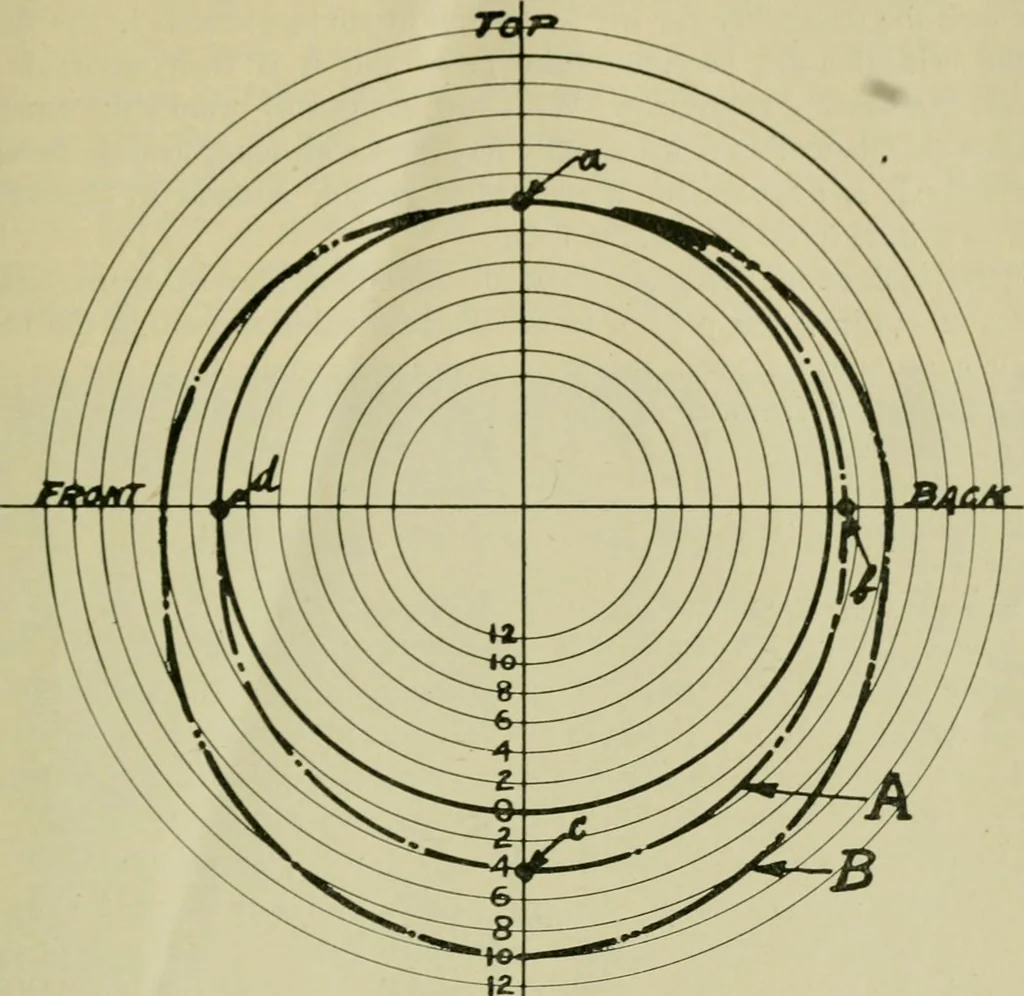

e of crank in Top posi-tion and its posi-tion assumed to beon the reference(zero) circle, thenthe distance of .001inch that point b lies outside of the reference circle denotes that the meas-urement between crank webs, when the crank was set in position Back,was .001 inch greater that that at crank… … Sort on Fig. 8. Graphical Representation of Crank Distortion. point a, or Top. The graph B shows conditions of distortion of the same crank justone year later. It will be noted that the distortion of the crank, asmeasured between crank webs, has become much worse, it being .010 inchwhen the crank…
