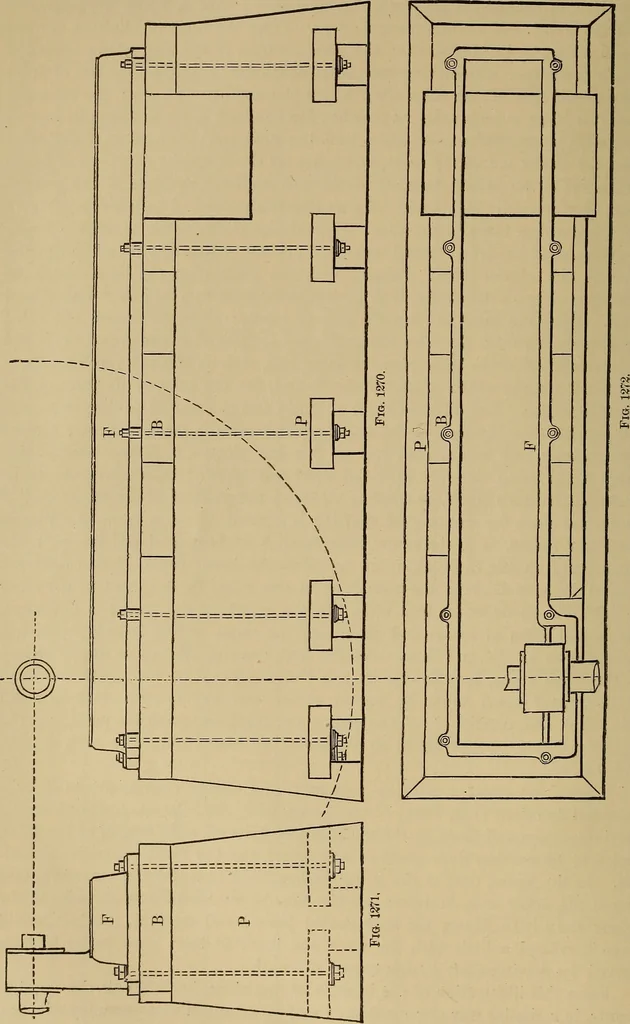

had the belts to the second row of looms in theupper story been drawn (as they should have been) straight, the belt wouldhave interfered a little with the alley, and it would have been better to havemoved the driving-shaft a trifle toward the wall. From this illustration of the location of… … ENGINEERING DRAWING. 535 portance as they involve a daily expense, where the others are almost entirelyin the first outlay. Macliine Foundations.—Figs. 1270, 1271, and 1272 are side, end elevations,and plan of the foundation of the stationary steam-engine. F is the cast-ironframe or bed-plate of…
