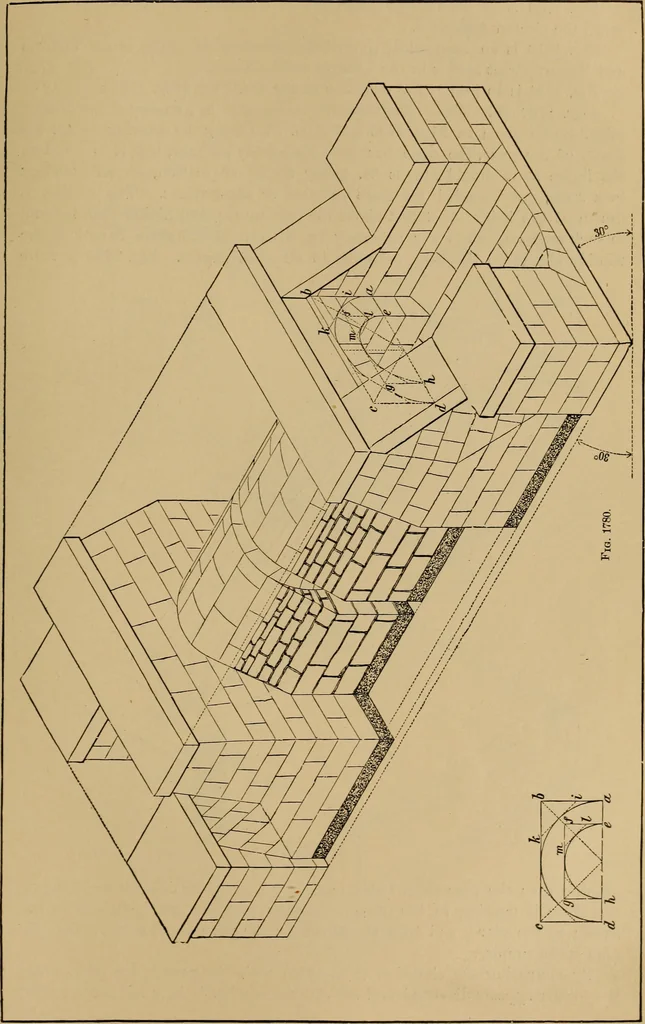

Fig. 1779 ISOMETRICAL DRAWING. YOl … 702 ISOMETRICAL DRAWING. Fig. 1780 is an isometrical projection of a culvert, such as were built be-neath the Oroton Aqueduct. Fig. 1016 is an isometrical view of the overflow and outlet of the Victoriaand Regent Street sewers in the Thames embankment. Fig. 1781 is an isometrical elevation of the…
