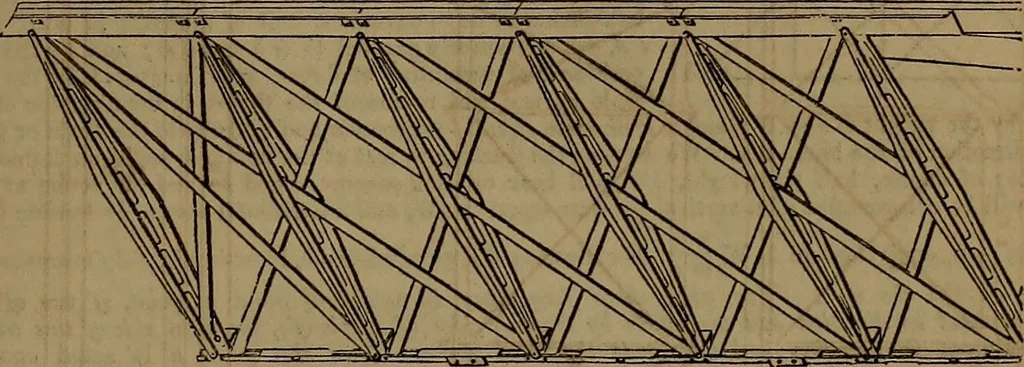

rd is of cast-iron, in two parts, bolted together, and breaking joint, and forming a T section ofabout 12 square inches. The lower chord is of wrought-iron, composed of two plates, each 4 inchesdeep, by -J inch thick, placed side by side, with an interval of £ inch between them to receive the… … each side of the joints. The uprights or posts connecting the chords, and to which they are bolted,are of cast-iron, about 3 feet 4 inches apart, of an H section, and of 8 square inches in area. Througha hole in the centre of these pass the diagonal rods, two in each pannel, of wrought-iron 2 by £…
