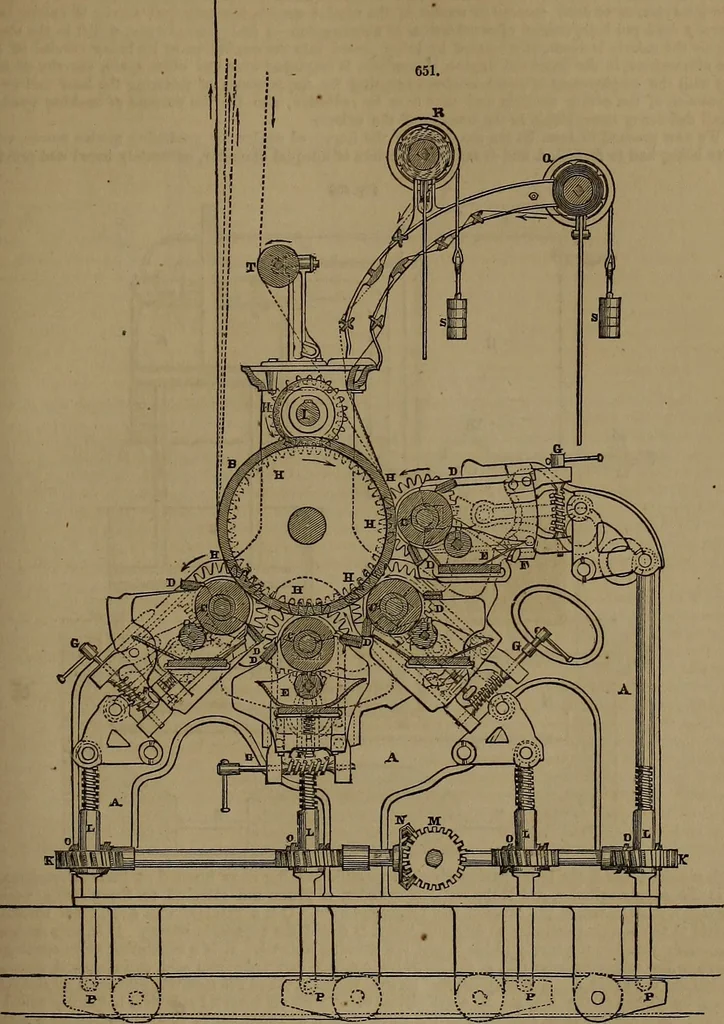

inders; their diameter is generally about 0328 feet. The vessels in which the rollers dip are made of copper or wood. It is necessary to keep them sup- CALICO MACHINE. 229 plied with a constant quantity of printing material, for the rollers would soon only skim over the sur-face of the fluid and… … A A, frame-work. B B B B, pressing cylinder. CCCC, engraved cylinder. D D D D, scrapers. fiEEE, vessels containing the color-ing matter: they are raised andlowered at pleasure, by the screwsFFFF. G G G G, endless screw, guiding theregulators. HHHH, pinions and wheels whichturn all the machinery. I,…
