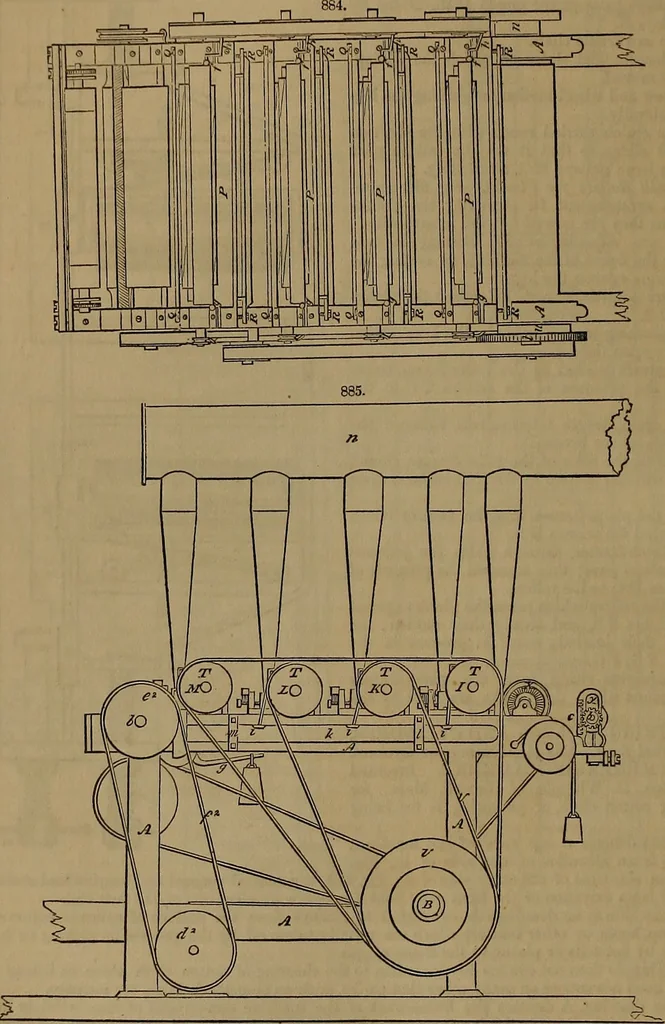

f it with respect to the cutters and blades, being as seen in the drawings. Each ofthe series of revolving cutters lias a pulley T fixed on it. There is a driving-pulley V on the driving-shaft. A belt V passes around the said pulley V, and the two middle pulleys TT, as seen in Fig. 885.It is by… … as it passes from the under surface of a friction-roll on cylinder Z to the top of the first rule S; the saidbrash is revolved by a belt, which passes around two pulleys b c, the former of which is fixed on thedriving-shaft, and the latter on the shaft of the brush x. In the rear of each blade 0,…
