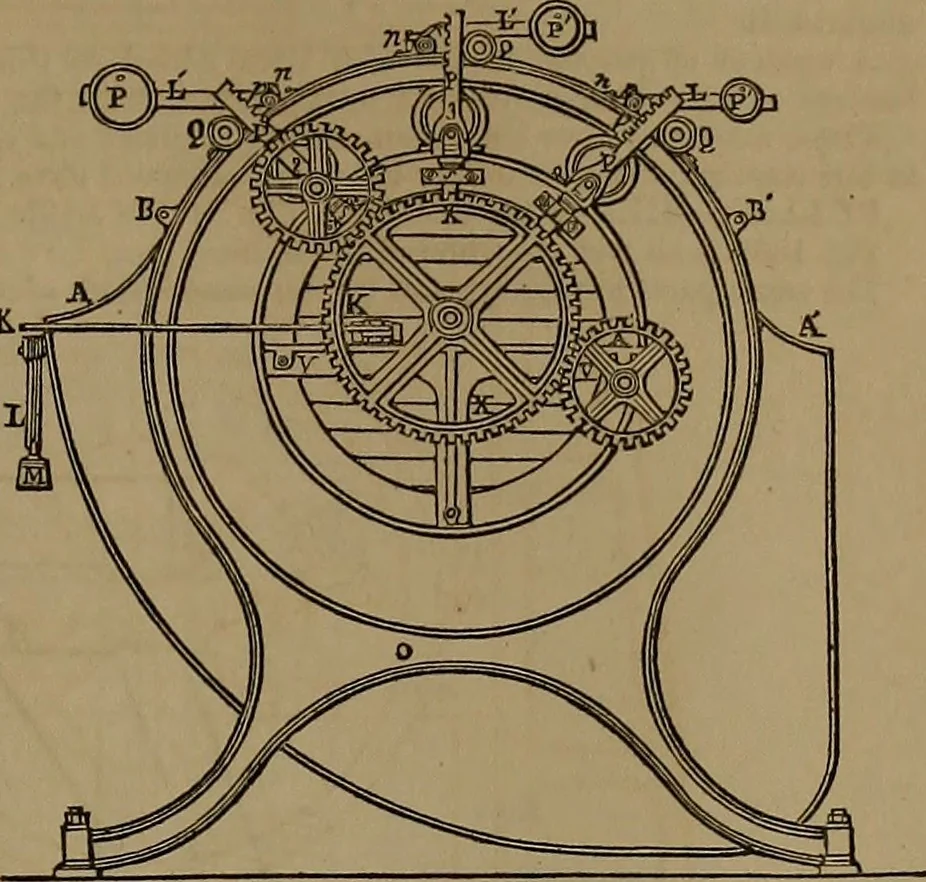

d at pleasure. FULLING. 727 The operation is as follows: one end of the cloth having been passed between the sets of horizontaland vertical cylinders, the two ends of the cloth are then attached together, so as to make an endlessband. The machine is now set in motion by the pulley e on the shaft b,… … A rotary fulling-mill, still better than thepreceding, is given in Figs. 1859 and 1860. Fig. 1859 is the side elevation, and Fig.1860 the longitudinal section, showing theinterior arrangement. A A is the main cylinder, (driven by ageer;) on either side are cheeks betweenwhich the small cylinders or…
