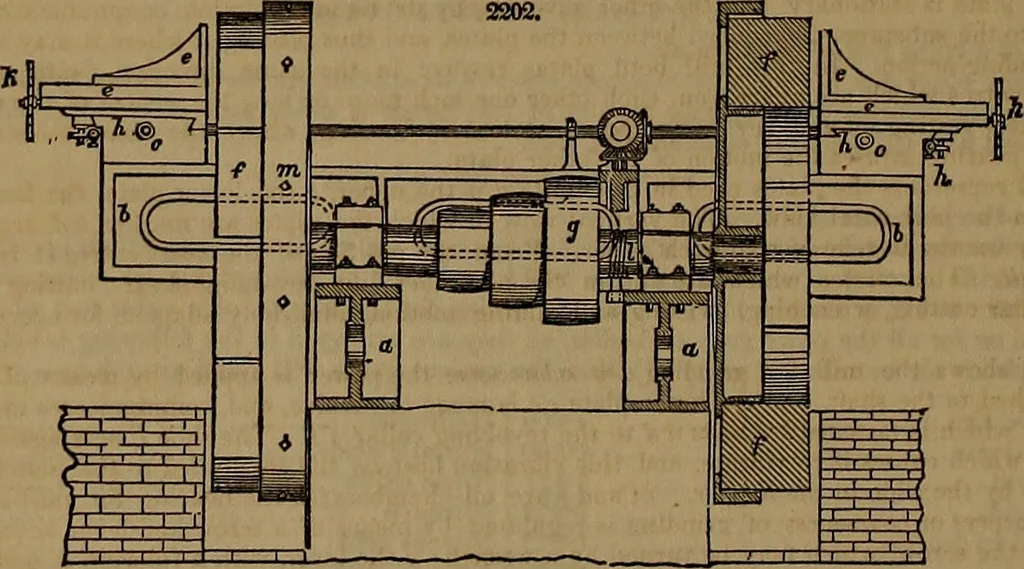

lines in Fig. 2202, thus communicating the motion to the upright spindle ; from this it is carriedby the bevel-wheels to the spindle running horizontally the whole length of the machine, having ateach extremity three small bevel-wheels. The action of this apparatus is thus, supposing the slide tobe… … clutch being disengaged from it; on the travelling slide d is fixed a stud or pin h; a long rod h of thesame length as the bed c, is movable in two stud-bearings fixed to it. As the slide d travels, the pin hcomes into contact with a second stud or pin adjusted to any position on the rod k,…
