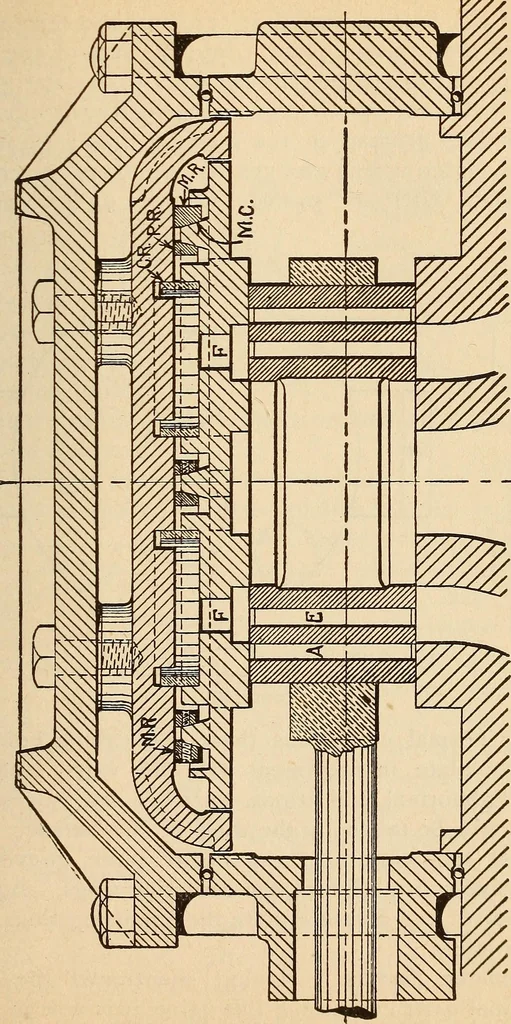

set on the cones form jointsagainst the pressure plate. Pressure Plate. The pressure plate is made as a partof or separate from the chest cover. In the type ofvalve here referred to, the pressure plate is madeseparate (see Figs. 82, 83 and 84) and is provided withwings (VV) which are machined to… … 170 LOCOMOTIVE ENGINEERING dowel pin, and machined at the top to receive wings(W) of the pressure plate. Into the face of the pres-sure plate two grooves are cut with either straight ortaper walls and which register correctly with the cor-responding grooves in the balance plate; these arecalled…
