Appleton's dictionary of machines, mechanics, engine-work, and engineering (1861)
Appleton, firm, publishers, New York. (1852, D. Appleton & Co.) · New York : D. Appleton · leaf 296

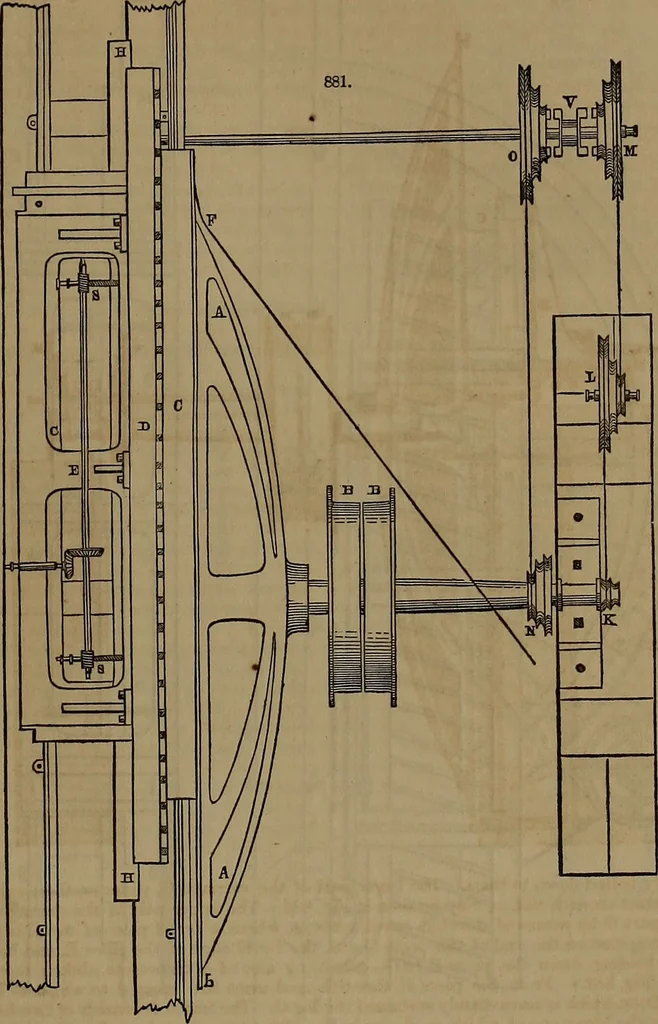

log in the direction of itsbreadth, in setting it for another cut—is effected by the screws S S, the bearings of which are fixedon the sole G, and then- screwed parts working in nuts fixed on the piece E. On these screws, worm-wheels are fixed, driven by worms on a horizontal shaft, which again is… … Action of the Machine.—The log being fixed to the frame D E, and the end of it adjusted in contactwith the edge of the saw, by means of the longitudinal and transverse sliding-surfaces already described,the clutch V is geered with the pulleys M, the driving-bands being shifted to the proper speeds.…
Mechanical engineering
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
