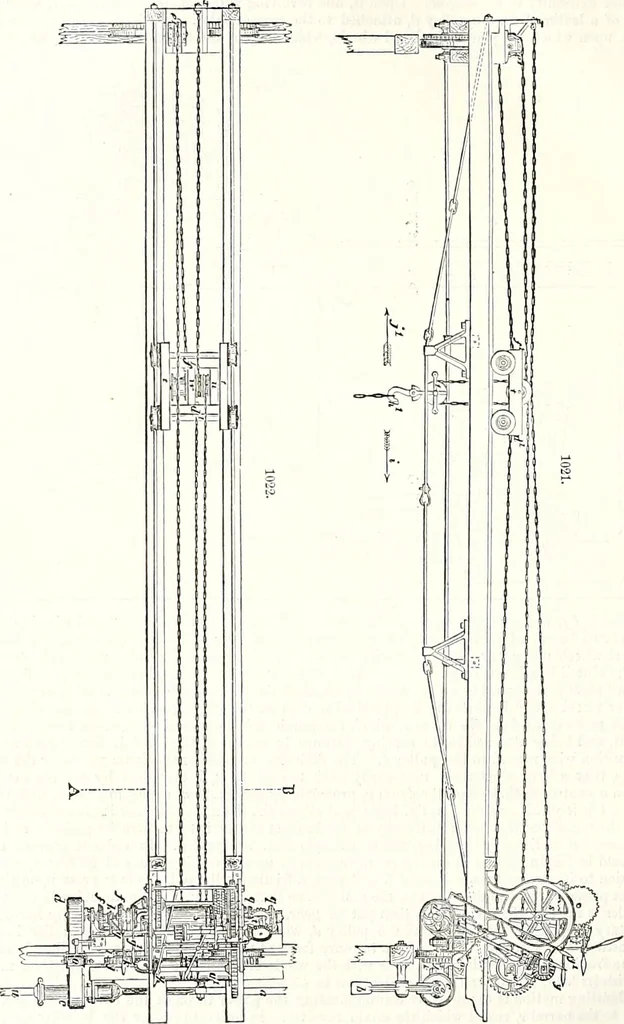

g motions. Two chains are attached to the barrel in such a way, that one winds when the otherunwinds. One of these chains is attached to the small truck t, at V7, and the other is carried round thepulley e, and fastened to the truck at f, so that by alternately pulling the clutch box c, in geer… … Each of the above—the longitudinal, the transverse, and the hoisting motions, can be used indepen-lently of either of the others; or any two of the motions may be used in combination; or the wholeuhree may be used simultaneously. For instance ; at the same time that a weight attached to the hook7i,…
