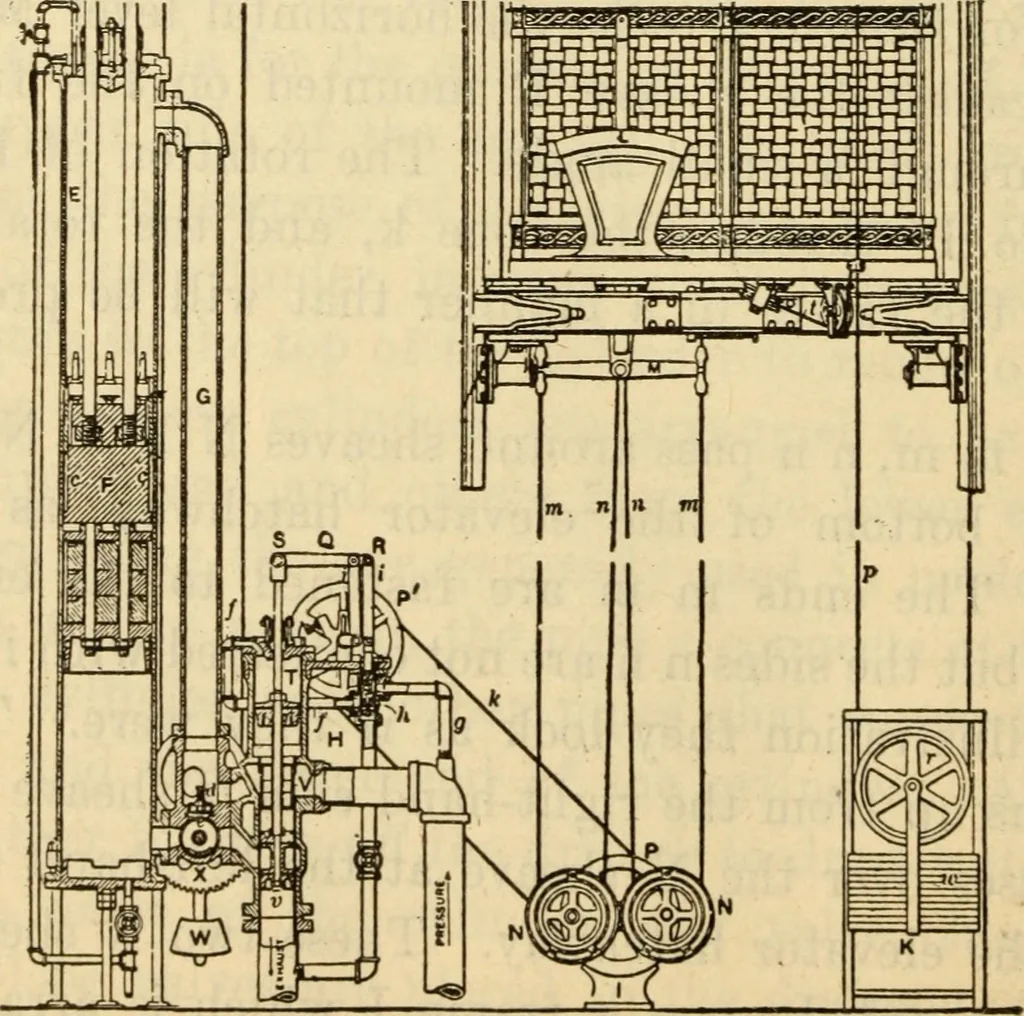

Fig. 399 Hydraulic Elevators 967 allows them to revolve freely around the studs upon whichthey are mounted. The frame I is suspended from a ropethat passes over the two small sheaves resting on top of theoverhead beams. The end of this rope extends downward,outside of the elevator hatchway, and has…
