Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 360

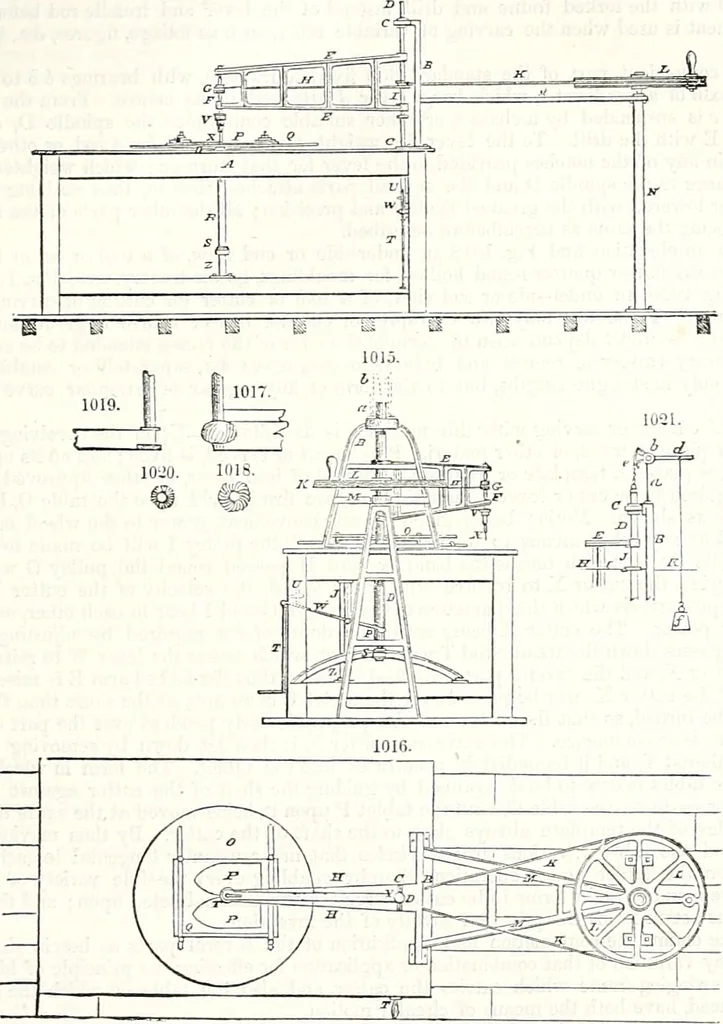

d CarvingSubstances to be applied for Inlaying and other purposes.—This invention consists in certain improvedconstructions or arrangements of machinery, having a revolving cutter, by means of •which, in conjunc-tion -with a moveable table, tablets of wood and other materials can be cut away,… … Fig. 101-1 represents a side elevation; Fig. 1015, an end elevation; and Fig. 1016, a horizontal viewof the machinery. A A is a bench or table, for supporting the several parts of the machine; B B is astandard or bracket-frame, firmly fixed to the said bench; wliich frame is provided with…
