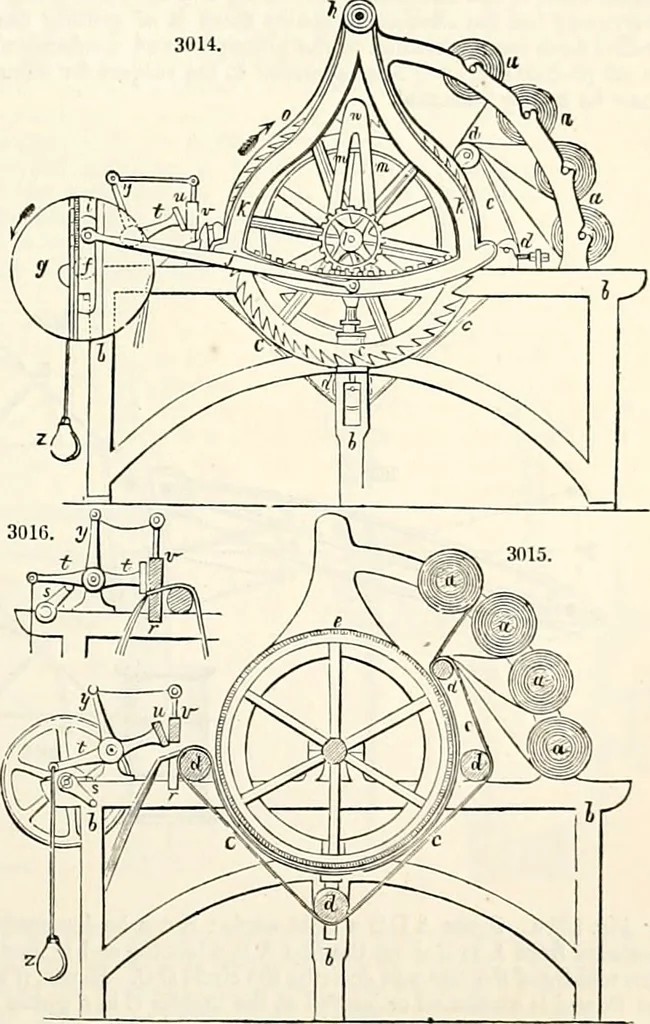

groove, upon the face of thedisk g, at variable distances from theaxis, whereby the eccentricity of thestud a, and of course the throw of tliecrank, may be considerably varied. Thecrank-stud i is connected by its rod J to theswinging curvilinear rack k\ which takesinto the toothed wheel I that… … 462 PARALLEL MOTIONS. The crank-plate g being driven round in the direction of its arrow, •will commnnicate a see-saw move-ment to the toothed arc k, next to the toothed wheel I in geering with it, and an oscillatory motion tcthe arms w; m, as also to their surmounting pall ». In its swing to the…
