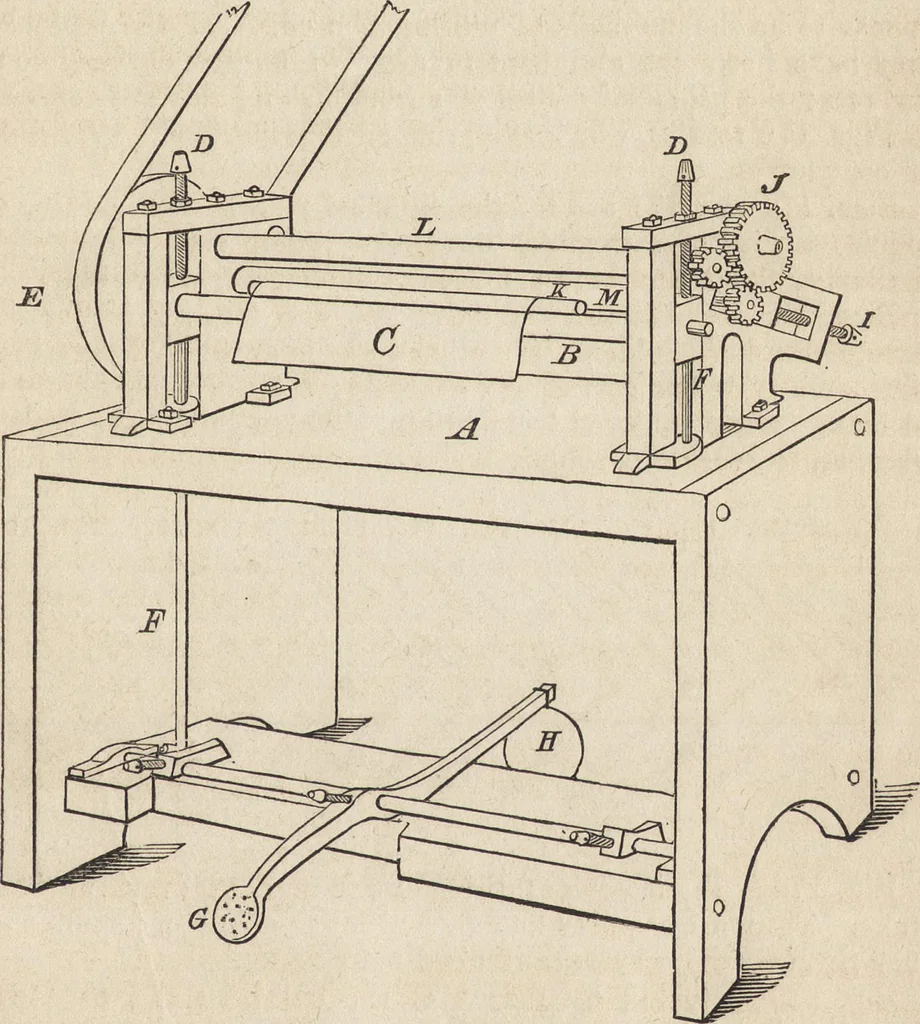

lers.E is the pulley and belt; A is the bench; H is a weight which is usedonly when the machine is worked by a crank. The operation by steamis as follows: the rollers, L and M, are in constant motion, the mandril,K, is taken out from the three rollers, and the edge of the sheet, C,to be formed, is… … K, is brought in contact with L and M; the three rollers, togetherwith the mandril, are revolved, and the sheet C, is drawn in andformed closely about the mandril; the foot is then removed from G,which allows the roller, B, to drop down, and permits the mandril, K,to be taken out and the…
