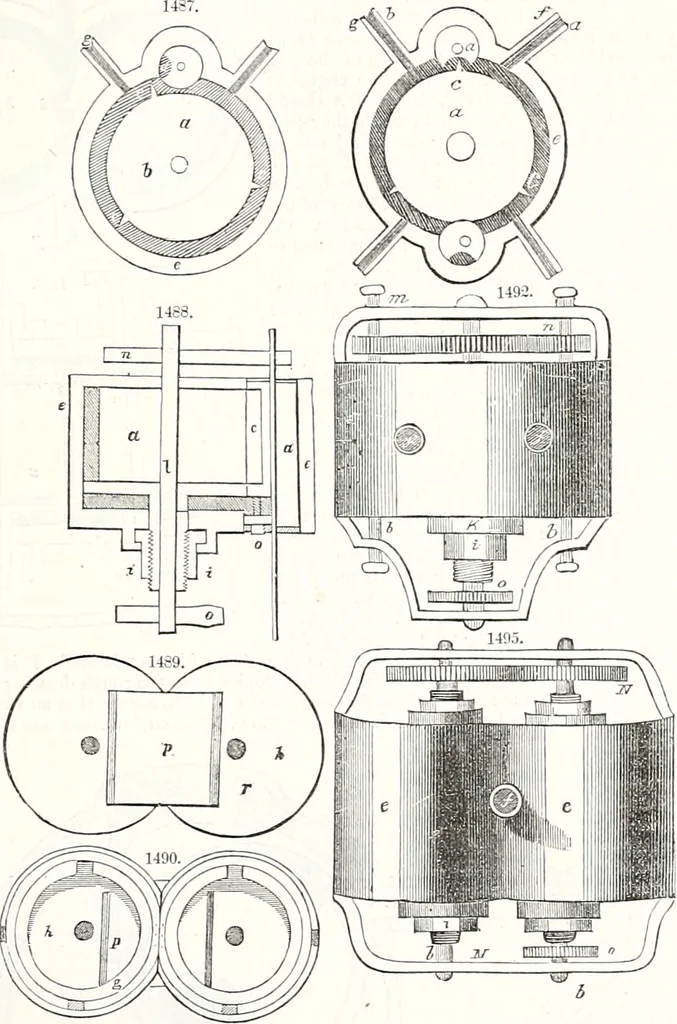

nd down, so as to fit the -wings of the cylinder. Letters «», in Fig. 1483, re-present two cog-wheels running into each other, attached on the outside of the engine to the axis of thecylinder and cone, placed there for the purpose of producing a corresponding revolution of the saidcylinder and… … Another variety of steam-engine on this principle is shown by an end section view in Fig. 1491, anaan external view in Fig. 1492. This engine has a cylinder with two small conical runners on each side,the said conical runners being of the same construction as before described, with one groove cut…
