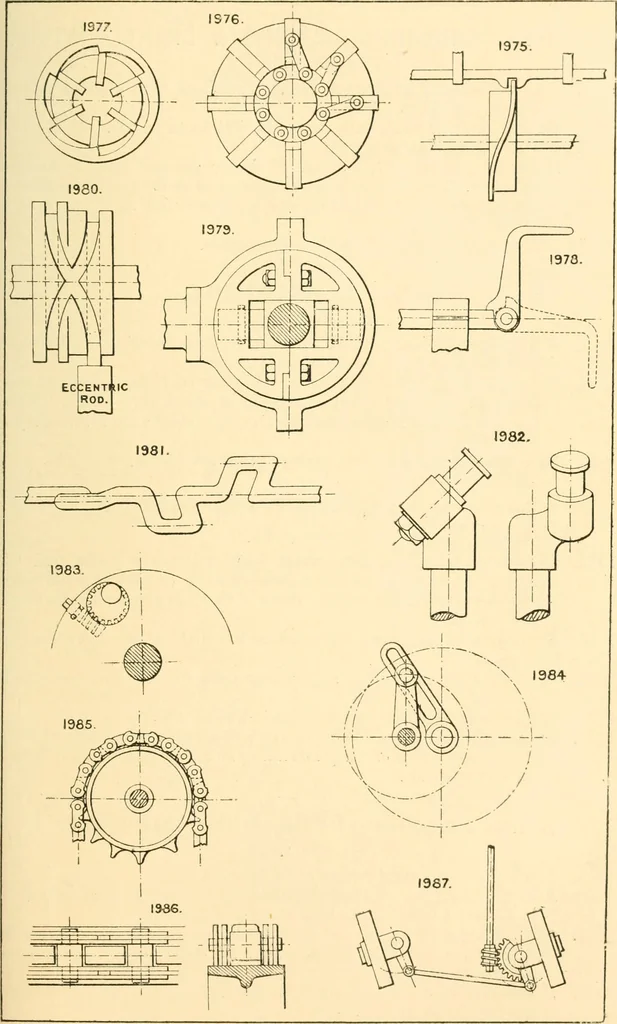

le of revolution. Section 11.—CHAIN GEAR. (See also p 30.) 1985. Chain Gear Co.s patent pitch chain. The tendency of the chain to travel to the point of the teeth is believed to keej* italways up to pitch. 1986. Pitched chain, with flat links, open centre and cylindiical distance pins A A to tit a… … 254 TBE ENGINEEMS SKETCB-BOOK. Section 13.—CRUSHING, GRINDING & DISINTEGRATING. [See also p. 36.) 1988. Eccentric disc grinding mill, The discs have grooved faces, annular, radial or spiral. 1989. Grinding face tool, with segments of stone or emery. 1990. Huntingdons stamp mill. Surface…
