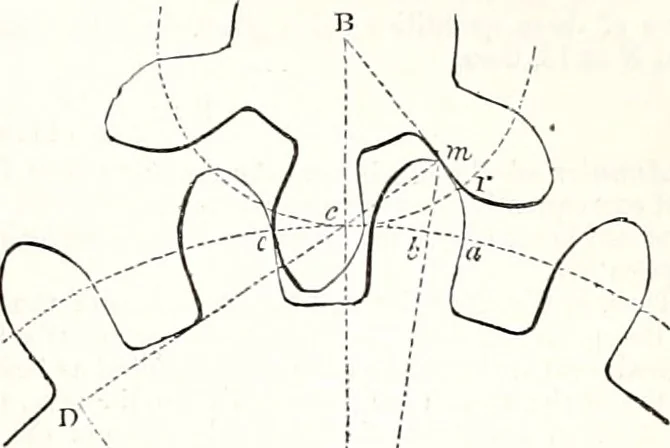

olute teeth manifestly obtain, however great may be the dimensions of thepitch circle of their wheels, or whatever disproportion may exist between them. Thus of the two wheelsA and B with involute teeth, which work together, let the radius of the pitch circle A c, Fig. 2066, of onabecome infinite:… … A, Btruck, and which bears a constant ratio to the first, will also become infinite, and therefore the invo-lute m a will become a straight line, perpendicular to the pitch line at a. For it is evident that theextremity of a line of infinite length, unwinding itself from the circumference of a…
