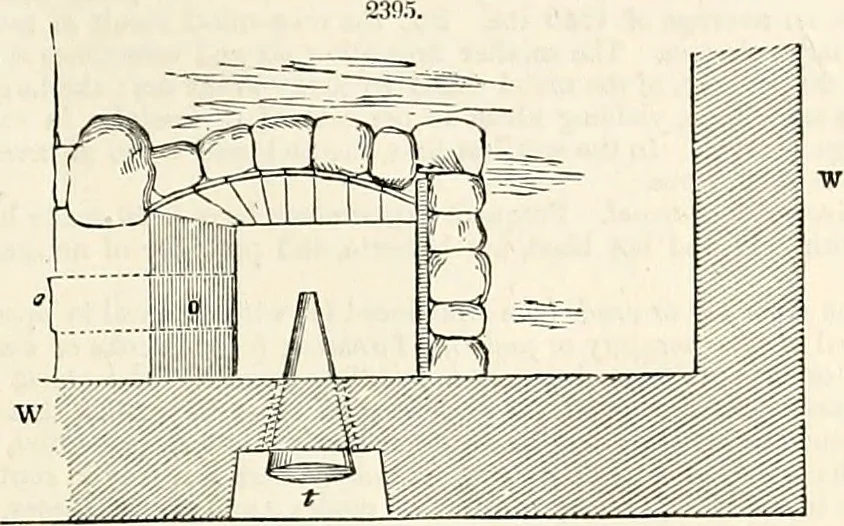

ws. In this last case, to maintain a continuous blast and fmnish aEuitable qu.antity, two tuyeres are required. The following figures indicate the construction of these Catalan forges. Fig. 2395 is a ground planon a scale of l-40th of the actual size of the forge-fires used in the Lower Pyrenees.… … Fig. 2396 is a vertical section through the axis of the tuyfere; and Fig. 2397 another section at rightangles to the former. In Fig. 2395, AV W represents the wall separating the forge-fire from the blastmachinery, and in which is the embrasure for the tuyere. The hearth is usually lined with cast…
