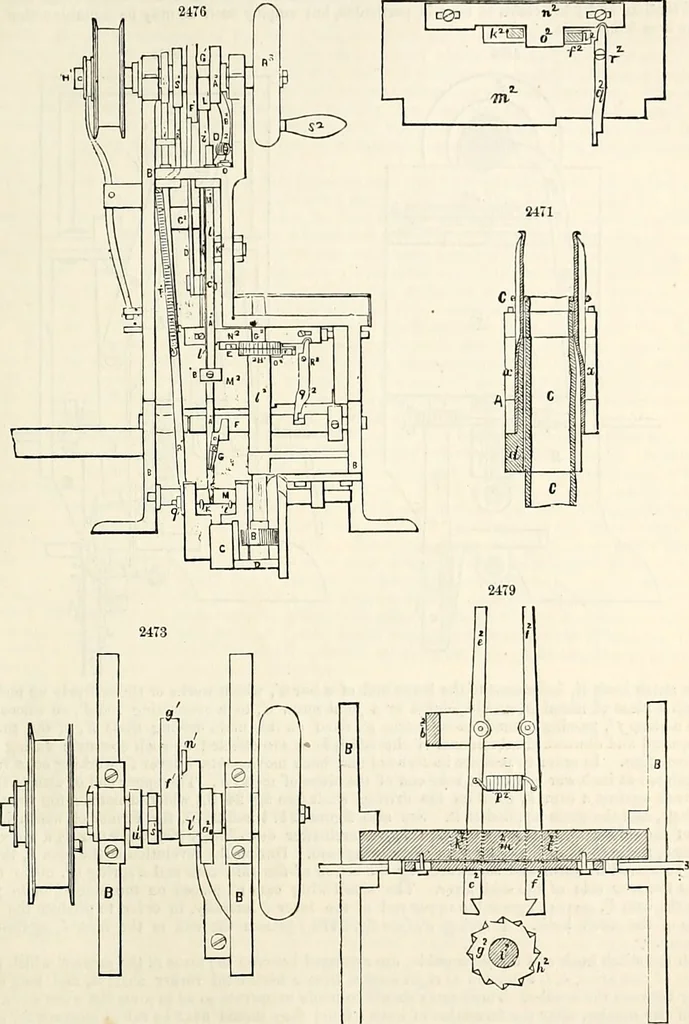

he endless belt is supported hy a straining oontrivanco L, whichis similar to such as are in common use in such machines. The work or knitting hands within is theendless belt, instead of without it, or on the outside of it. The yam guide or director is seen at D. It consists of a curved arm, made… … The stitch hook is seen at E. It is an-anged in rear of the chain belt of needles, and is formed asrepresented in side view on an enlarged scale, fig. 2472, that is to say, it is made not only with a hookedend, as seen at h, hut with a shoulder /, a short distance in rear of said hooked end, the…
