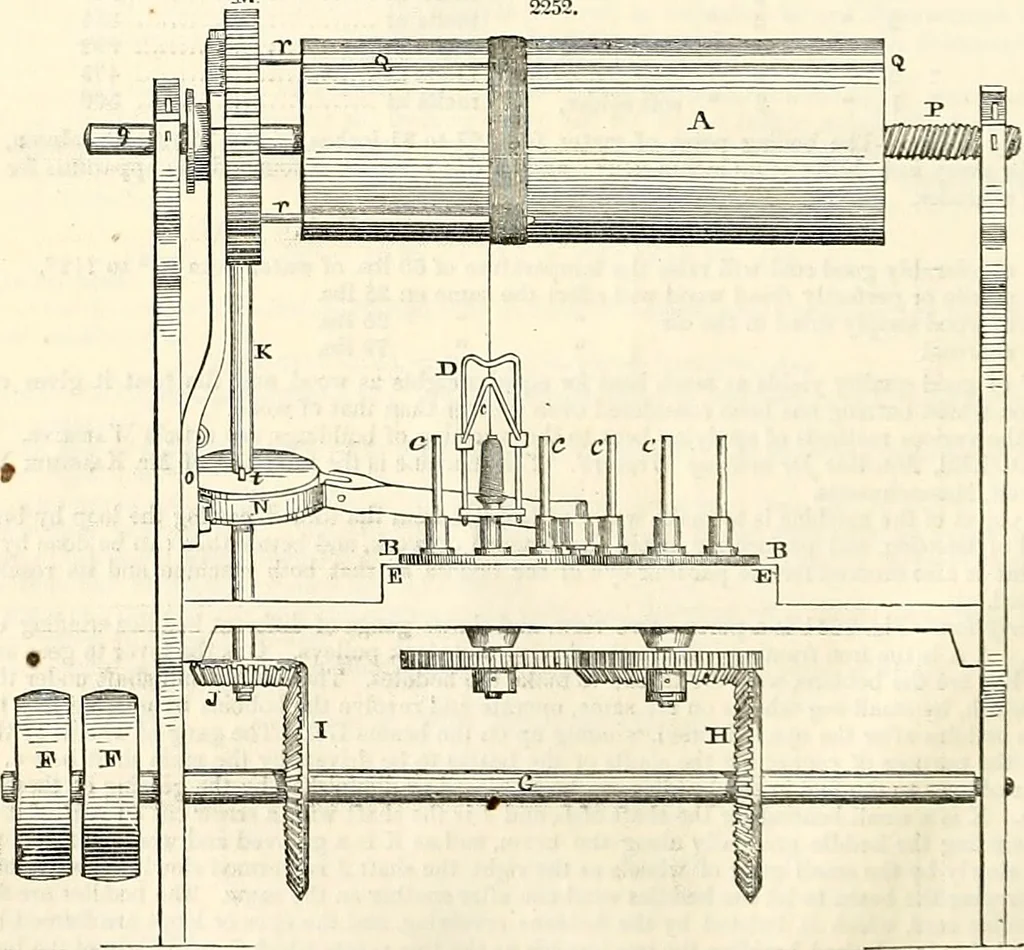

fellow-table, as seen in Fig. 2253. The tables B B constitute one pair, and the tables B 2, B 3, another,forming two distinct harness, one on each side on two beams, but driven by the same geering. Thevarn is put on the spindles C, and passes through a hole in the top of the flyers D, or over a… … 1 a at each end. The flyers pass through these holes, and the legs serve as guides to the weights,rhis is to take up the slack of the yarn. The spindles have each a groove in their lower parts, adaptedto slide into the recesses of the tables when the recesses coincide. The platform E E h.is…
