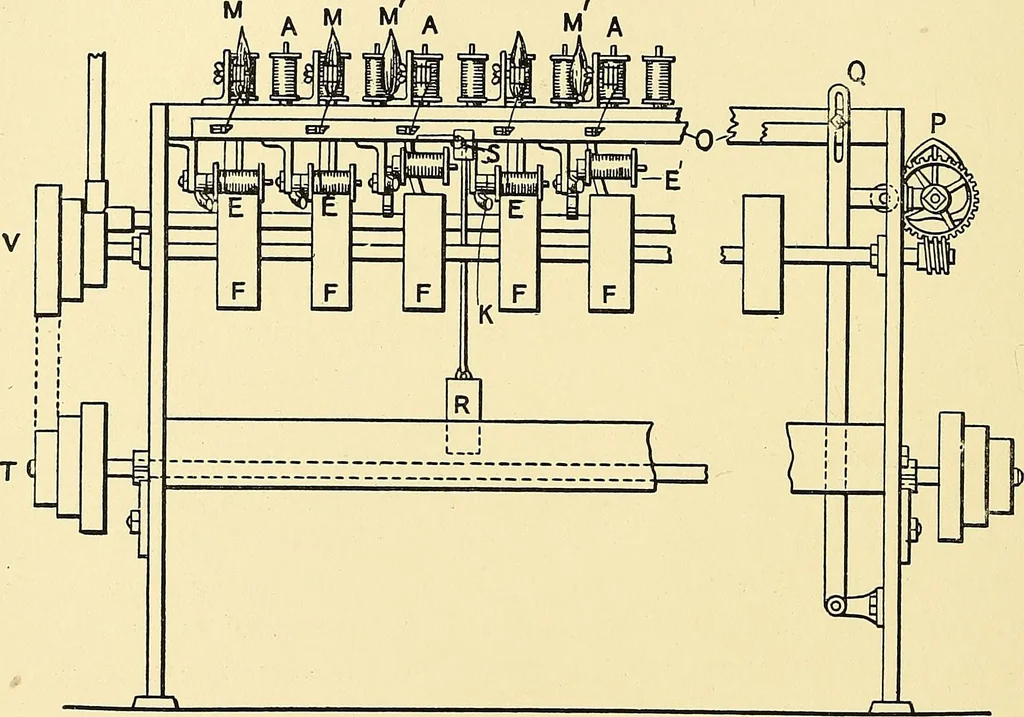

f the machine was hung on the sidesof the frames, the ends of the shaft coming out on both sides, andholding each a threefold pulley from which extended the belt drivingthe drum-cylinder shafts on the head of the machine. These shaftsextended the whole length of the machine, one on each side, and… … Fig. 196.—Gassing Machine : Front View At e and m the bobbins and gas jets are shown thrown out of position. o is a rod, actuated by the heartwheel p and the lever Q, which guides the thread on to the bobbins ee. r is a weight attached to a cord or chainrunning over the pulley s keeping the lever Q…
