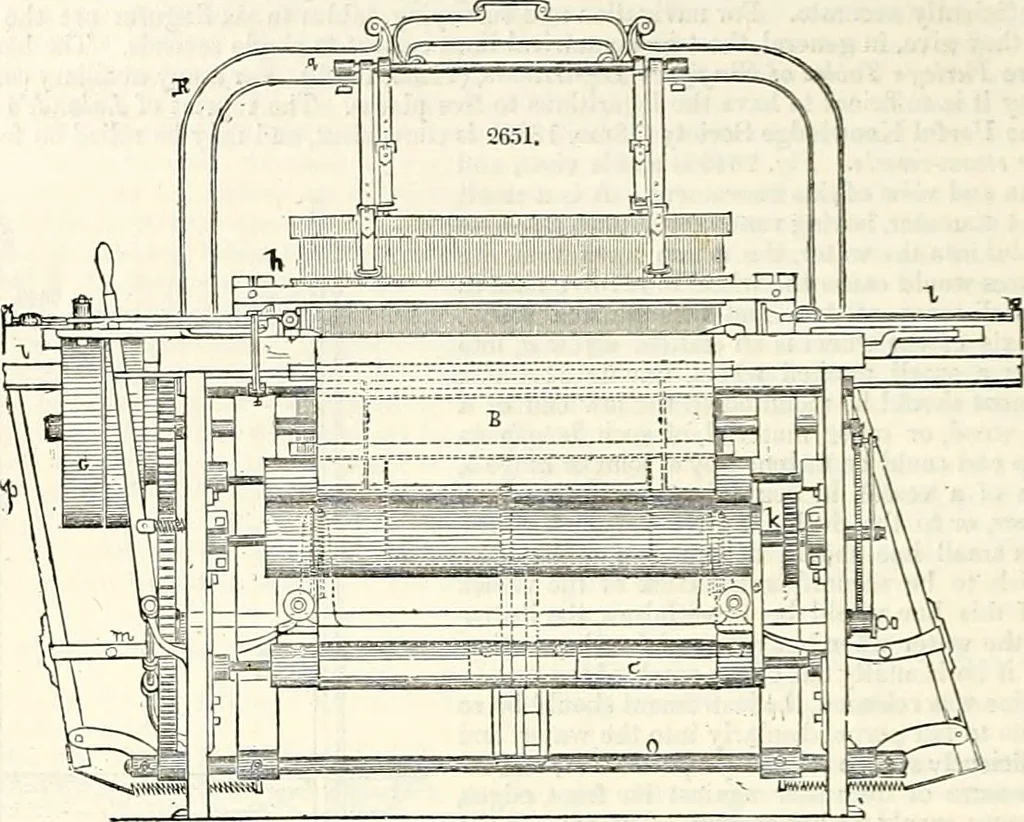

LOOM, POWER. 0, lever, operated by cam, on cam-shaft. P, lever attached to 0, which comes in contact with catch L, (when the filling breaks,) and .brows tli»jhipper-handle Q out of the notch in which it is held, and stops the loom.Q, shipper-handle for stopping and starting the loom. … R, piece attached to the protecting-rod, tliat strikes a lever under the breast-beam, (whenever thgshuttle fails of performing its duty,) and stops the loom. S, picker-staff for throwing the shuttle, which receives its motion from a cam on cam-shaft, communicated by a treadle and strap T. T, strap…
