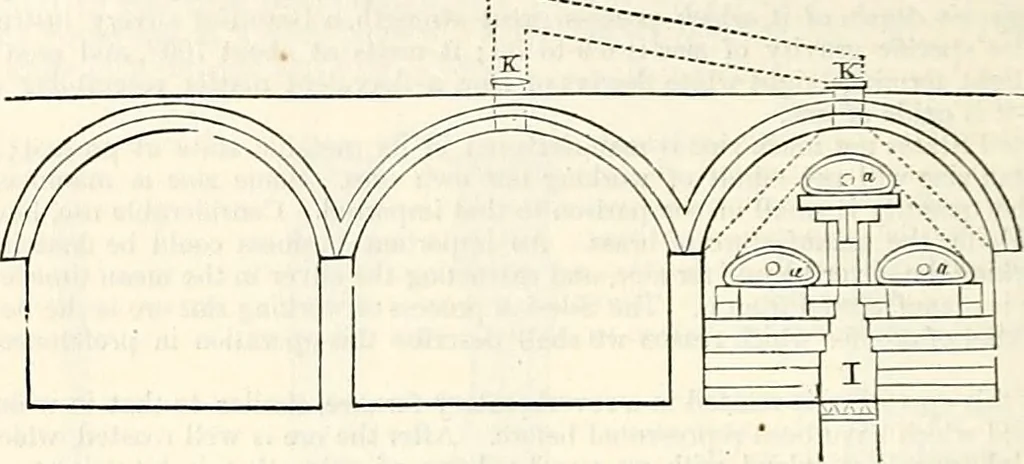

erations of this kind, we will describe the most perfect apparatus invented for this kind of work—it is that constructed by Dr. Andrew Ure for a Em-opean establishment of this kind. 408 METALLURGY. Fig. 2836 sliows a section of a furnace parallel with the front elevation represented in Tig. 2837%aa… … shows the flues for the escape of the burnt gases. The whole arrangement is shown in Fig. 2838 rerjdistinctly. The two ends of the retort, a, are shut by two iron lids, secured by cross-bars .and screw-bolts, luted with clay. The one end of the retort is provided with an iron pipe b, which leads…
