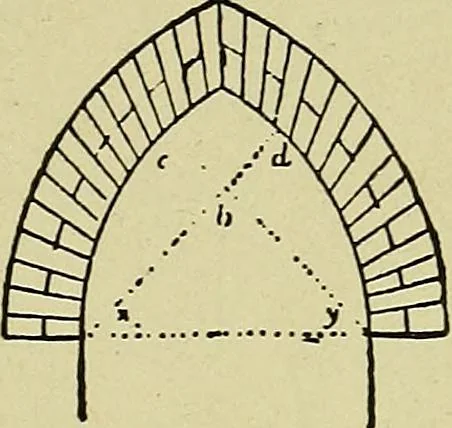

outside the figure as at G and F. EO, show the width of the opening, and H J, theheight. ARCHITECTURAL DRAWING SELF TAUGHT 135 A completed lancet arch is shown at Fig. 131,the radial or joint lines being exhibited. Theselines are drawn from the centers in all cases. The diagram shown at Fig. 132… … Fig. 132. Fig. 133. one side. The same process forms the otherside of the arch. The completed equilateral arch is shown atFig. 133, with the method of laying out thecurves. The centers being X and Y. As beforestated, the joints in all these arches should bestruck at right angles to tangents of the…
