Appleton's dictionary of machines, mechanics, engine-work, and engineering : illustrated with four thousand engravings on wood ; in two volumes (1873)
D. Appleton and Company · New York : D. Appleton and Co. · leaf 478

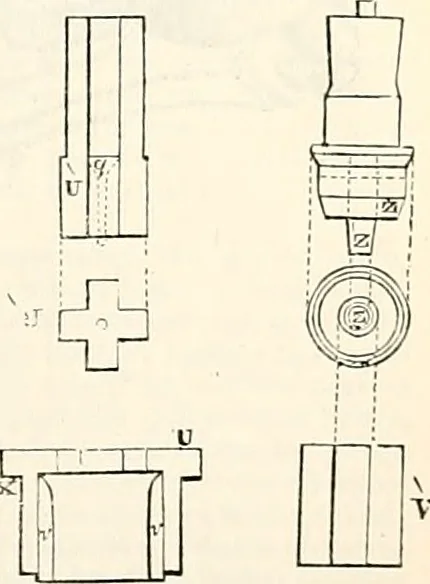

described. 2d. I also claim the transferring apparatus constructed substantially as described, in combinationwith the punches. PERCUSSION CAPS, MACHINE FOR CHARGING—M. W. Fishers. In Fig. 3033, the mag-azine or hopper, m which the fulminating composition is placed, is supported by the tremulous… … 472 PERCUSSIOX-CAP CHARGING MACHINE. The lower portion of the magazine is funnel-shaped, and opens into a rectangular tube in which thecharge E is accurately fitted, and freely slides back and forth. A circular aperture is formed in the under side of the tube at the distance of an inch or two…
