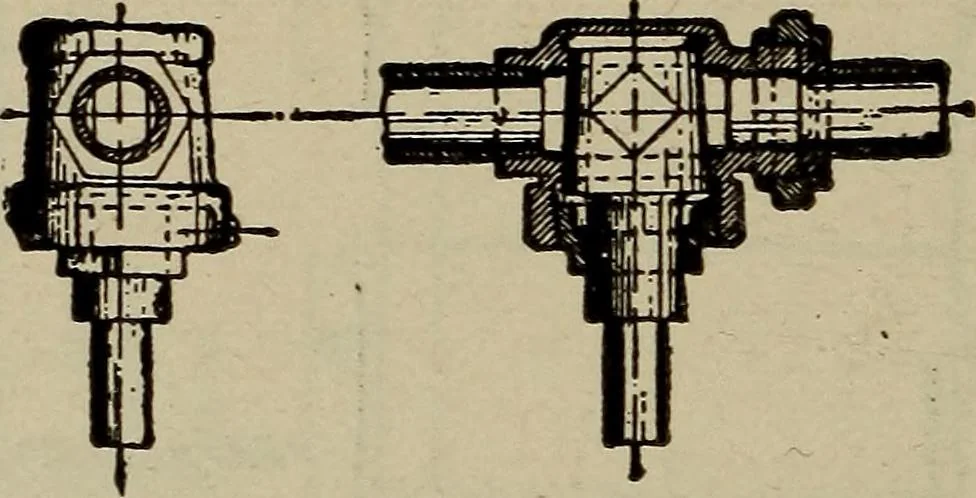

il, one for steam, one for air.Oil enters rear of burner from above, air is conveyedfrom below through a narrower passage to a commonmouth just behind which terminates a central tube sup-plying steam. The mixture of oil, air and steam is theresprayed into the firebox through one nozzle. In… … Figure 223h. Baldwin Feed-Cock. The opening in the plug, being square, retains its angular form and |permits of very fine feed) adjustment. The type of burner used by the Baldwin Locomotive jWorks is rectangular in cross-section, with two separatedchannels (one above the other) running its entire…
