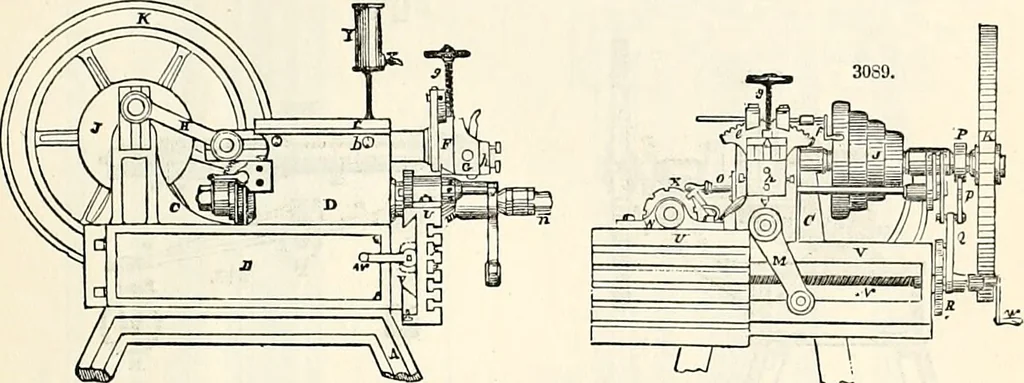

Fig. 3094. By means sf these slots the length of the stroke and the position »the tool may be easily and accurately adjusted to suit the work, as will bo sufficiently obvious byinspection of Fig. 30S8. The driving-spindle works in two bearings, one of which, as before mentioned,is cast ou the bed… … ^\J The planing of circular surfaces is effected, in this machine, by means of a hollow cylindrical cast-ironmandrel L, Figs. 3091 and 3092, accurately turned and fitted into the body of the machine, the centrebeing exactly under that of the square slide E. This mandrel is provided with a conical…
