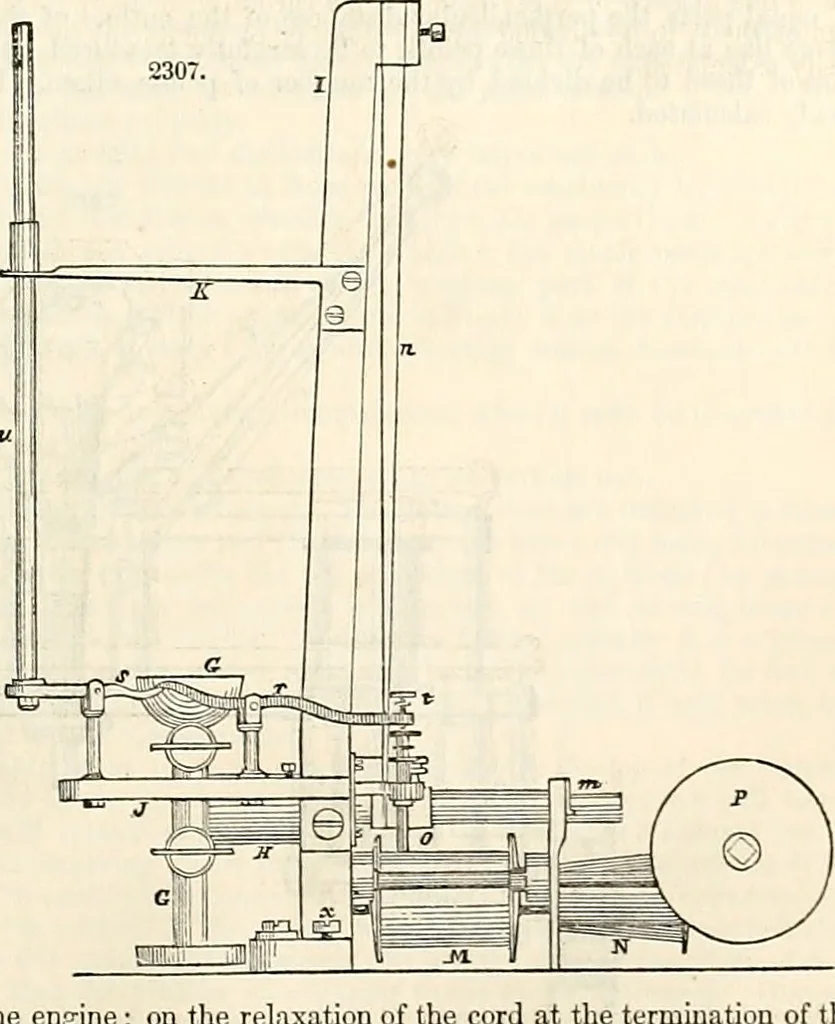

representing the stroke of the engine; on the relaxation of the cord at the termuiation of tnp stroke, it is taken up again by the action of the spring in the upright of the cylinder F, and the cylin-der E resumes its original position. The slip of paper is then wrapped tightly round the cyhnder,… … 56 INDICATORS. C Bhut, so as to form au almosphere line. A communication is then opened with the interior of the cylinui,r ol the engine by turning the cock C, and a figure or diagram is traced upon the shp of paper, exacuy representing the successive pressures of the steam above, and corresponding…
