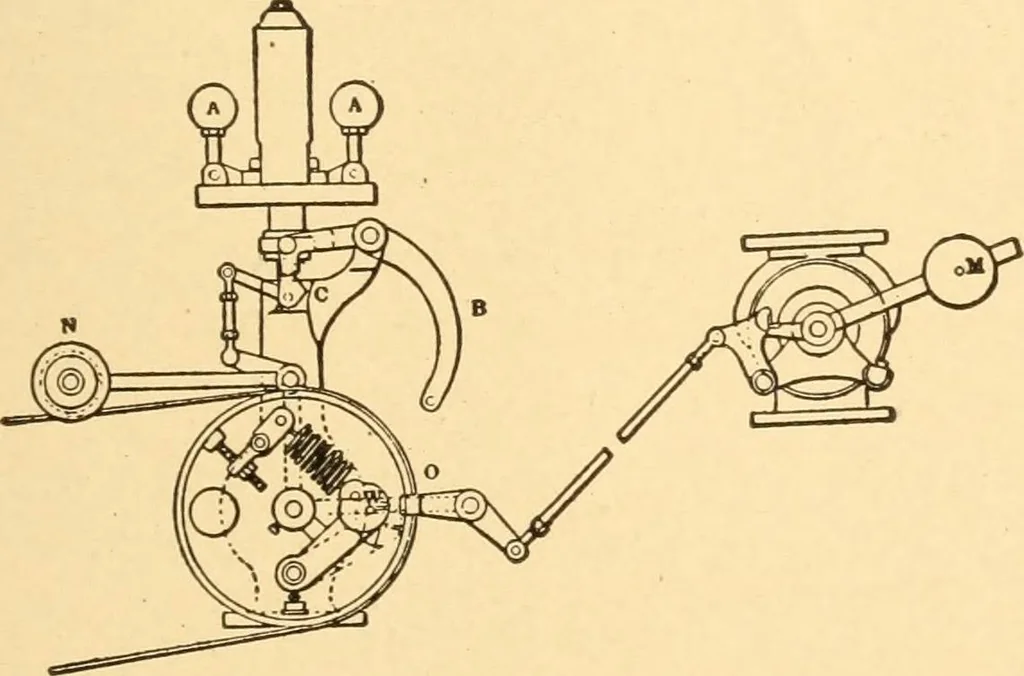

l governorof the shaft type mounted in the belt wheel of the main governor.The weight w of this auxiliary governor is provided with a lip, which,in the event of abnormal speed, will be thrown outward so as to en-gage with a small lip, O, on the end of the rocker arm shown. Theother end of this… … 96 STEAM POWER APPLIANCES. 212. SHIFTING ECCENTRIC for stopping or reversing en-gines. A slotted sleeve slidingon the shaft with wedge-shapedwings that pass through cor-responding slots in the eccen-tric, move the eccentric to thecenter and reverse by the longi-tudinal movement of the sleeveand…
