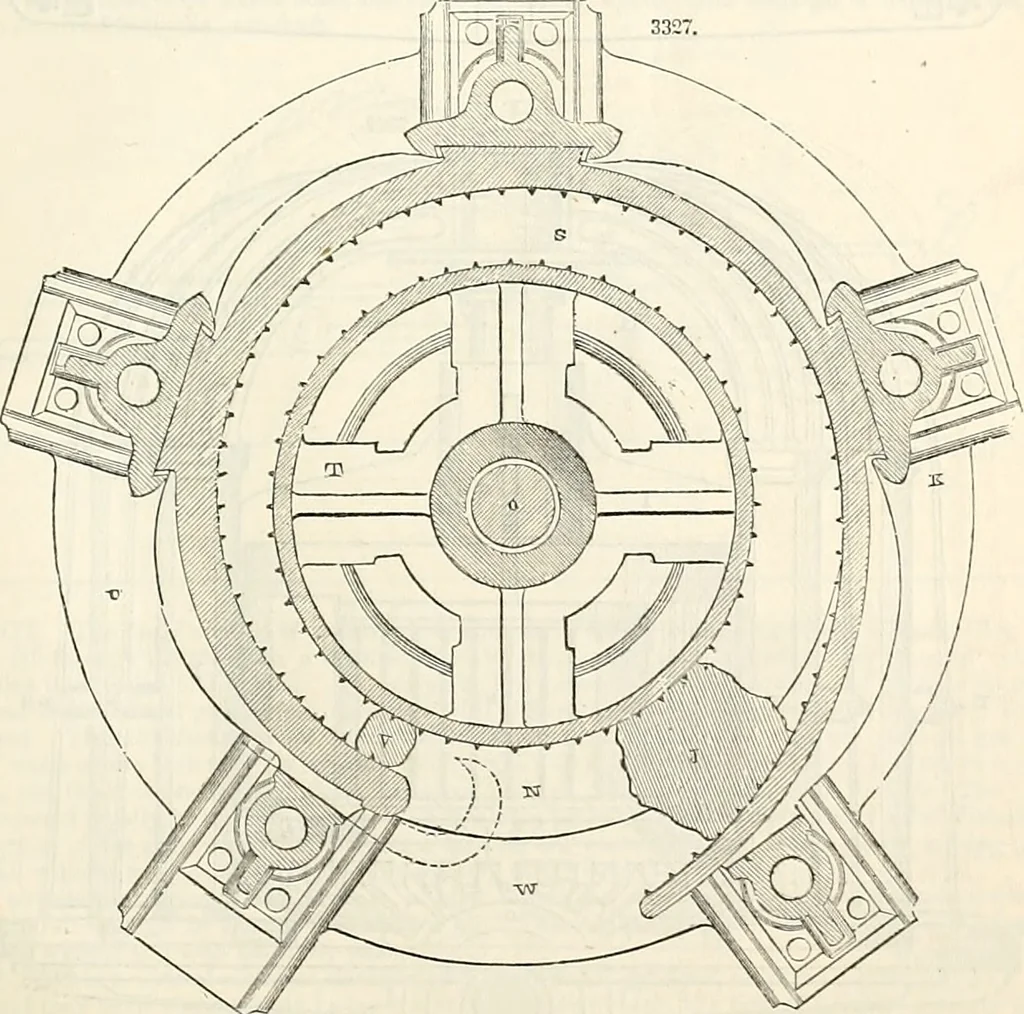

SHINGLER, BURDENS PATENT. This macliine, which is represented in Fig3. S327, SS28, and3329, is the invention of Henet Burden, Esq., of the Troy Iron Works, New York. Fig. 3327 is aci-ofB-section through B F E. Fig. 3328 is a vertical section through B F E. Fig. 3329 is a perspective … view A B C D E are five pillars fixed to the sole-piece 1111, which support the strong eccentric casiog H H H H, and the top jomnal of the shaft F. G G is a cylinder keyed on the shaft F, and driven 628 SHINGLER, BLRDEXS PATENT.
