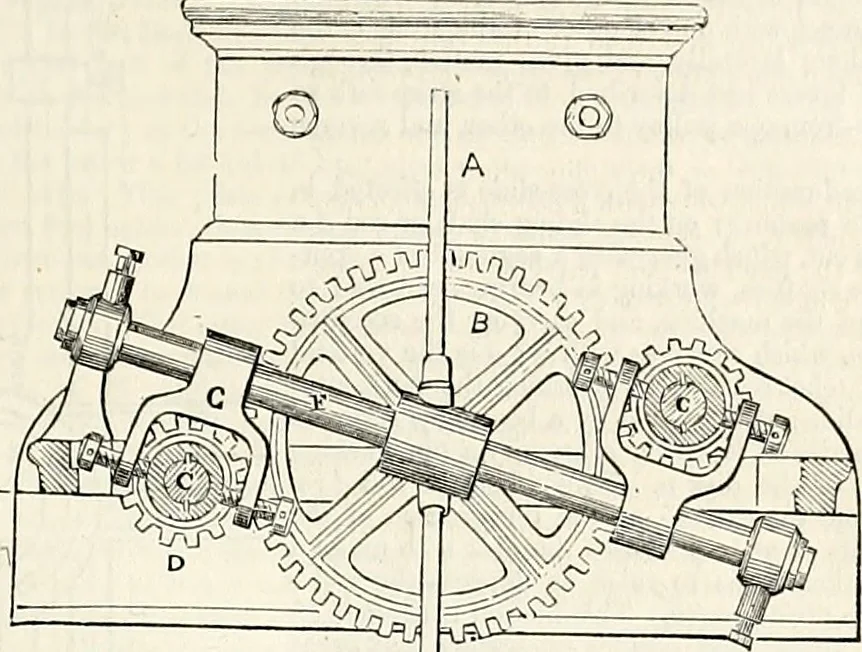

referring to Fig. 3473, which is aeide view of the tool-slide, frame, and geering, with the driving-pulleys removed. A is the travellingtool-slide, ean-ying the central driving-wheel \i, keyed on the pinion-shaft—the shafts C C each carry aloose driving-pulley, capable of connection by means of… … Two movable inclined tappets are fixed to the bed of the machine, which alternately come in contactwith the lever E on the oblique shaft F, so as to move it in and out according to the motion of the slide.The shaft F carries the two forks G, connected to the clutch-boxes of the pinions D D, which…
