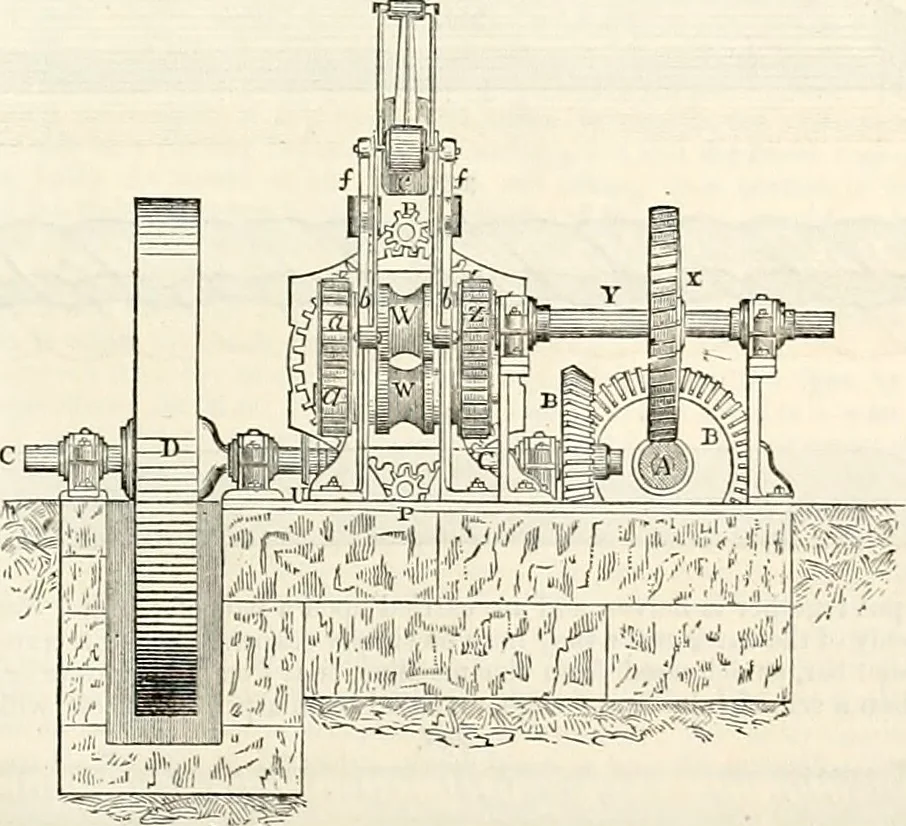

, Fig. 3686, the machine is shown as thrown out of geer with the driving-sliaft, whilst aa bar S S is passing through. This disengagement is effected by the two lever-handles T T acting eachone upon a clutch-box, corresponding with similar clutches on the worms v and v, the latter being… … The lower of the two delivering rollers W W, which simply revolve round their own axes, receiveoits motion from the main shaft, through the worm geering with the worm-wheel X on the second trans-Terse shaft Y, carrying a pinion Z geering with a similar one on the lower roller-shaft. The object…
