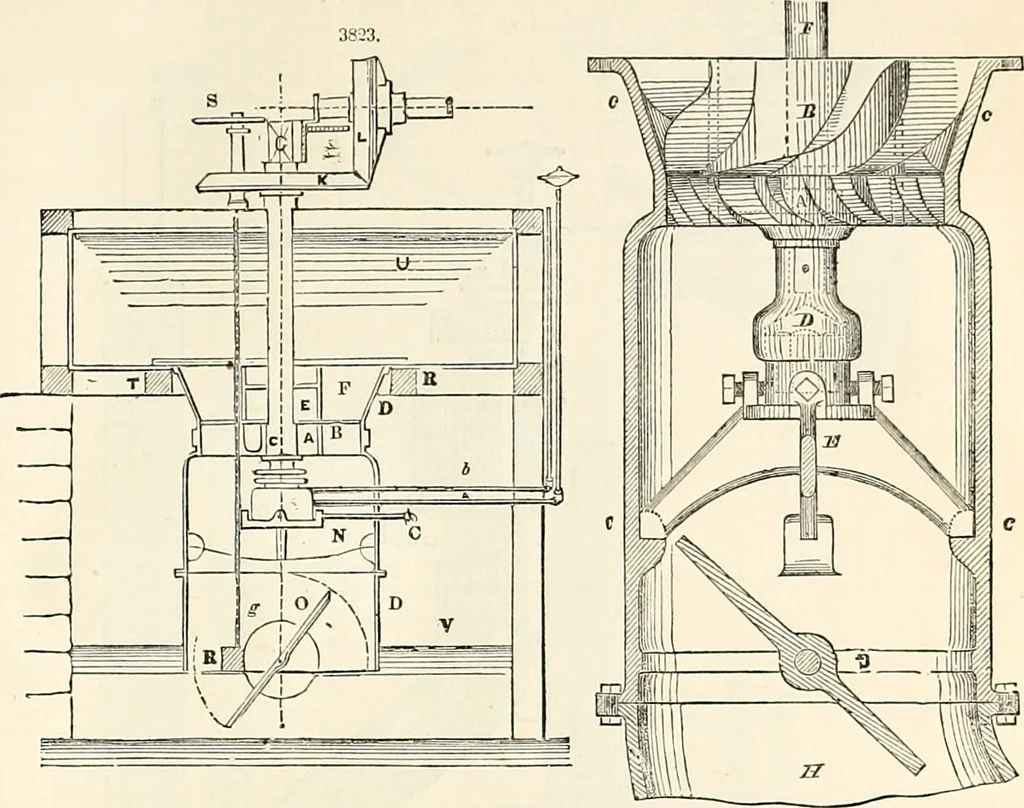

Joiival Turbine.—Fia:. 3823 represents a vertical section of a turbine. Arepresents the movable leheel, consisting of a cast-irou rim, having a given number of wrouglit-iron buck-ets, of tlie proper curve, mortised into and riveted to it, and occupying the space marlced B ; it is keyedto the main… … ing also a given number of wrought-iron guides mortised into and riveted to it, and occupying the spacar. Tliis wheel occupies the conical part of tlie cylinder, just above tlie movable wheel, with sufficientspace between them to allow tlie movable wheel to revolve freely. The upper edges of the…
