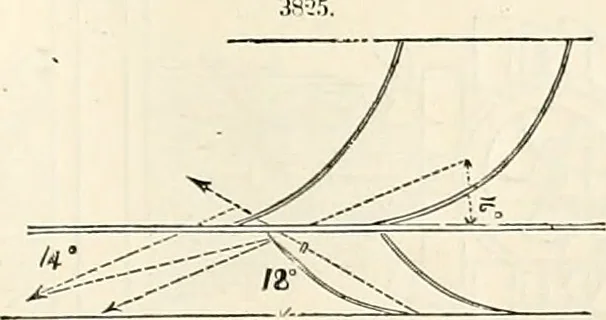

ie movable wheel, with sufficientspace between them to allow tlie movable wheel to revolve freely. The upper edges of the guides arelevel with the upper surliice of tlie flanch of the cylinder. The upriglit shaft C has its lower bearing orstep running in the oil-box H; Hie upper bearing C, runs in… … a: ■a Tlie oil-bos H, is supported by the cast-iron bridge SI, which rests on the lugs N N, on the inside ofthe cylicdcr. The gate 0, resembling a throttle-valve, is fastened to the shaft P, whicli works in stutf-ing-boxes cast in the cylinder. To one end of this shaft a worm-wheel is attached,…
