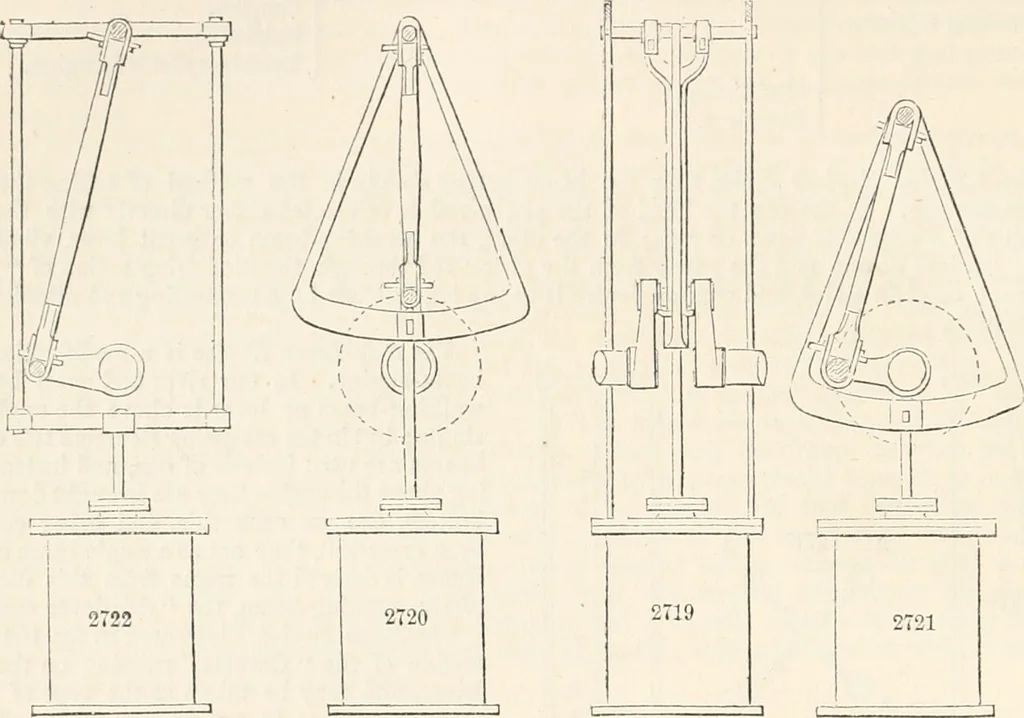

, where the piston-rod is made forked, so as, pass-ing round the shaft, to rise above it to a considerable height, from which again descends the connecting-rod to the crank. Figs. 2716 to 2721 illustrate the principle. The top of the piston-rod carries a four-armed cross-head h h, on each end of…
