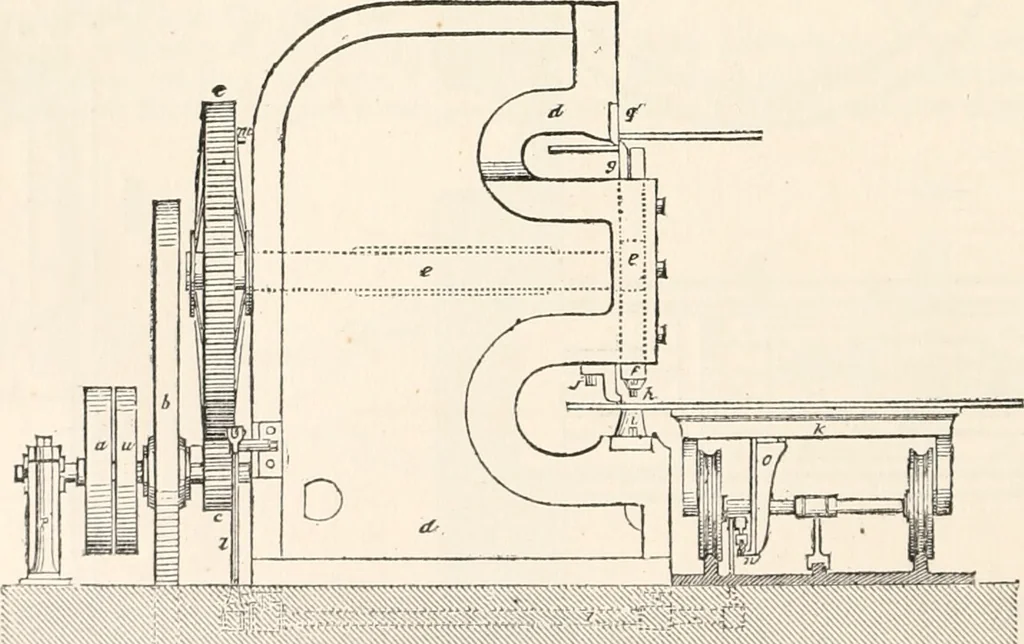

a, tight and loose riggers. b, fly-wheel. c, epur-wheel and pinion. Literal References. I d, frame for carrying machinery.e, shaft and eccentric for raising and depressing slide. 3173. … i«ii^.\,-... ImIII ......:. .....* :.... §s$lsi5§» /*, slide, the upper end having a steel cutter g, and the lower end the punches h.n, steel cutters.h, punches.», die frame. ;, stop for preventing the plate from rising.k, travelling table for carrying plate to be punched. I, rods, levers, and…
