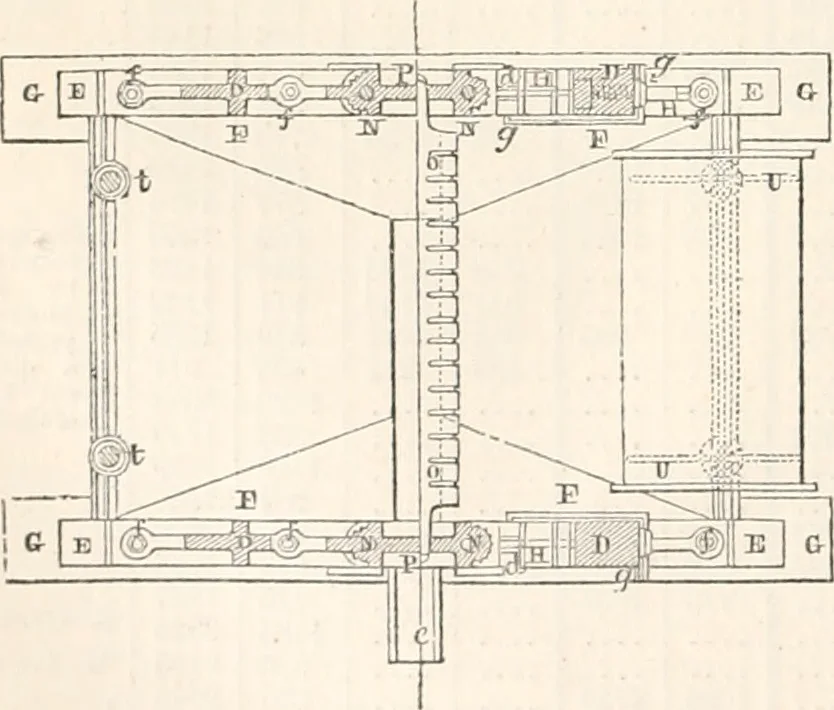

is a similar half-section taken on the line x—y. Fig. 3369 is a vertical transverse section, through the centre of the mill, exhibiting the form of sectionof the framing or standards, and the internal construction of the top-roller, with its gudgeon and bear-ings. Fig. 3370 is a longitudinal…
